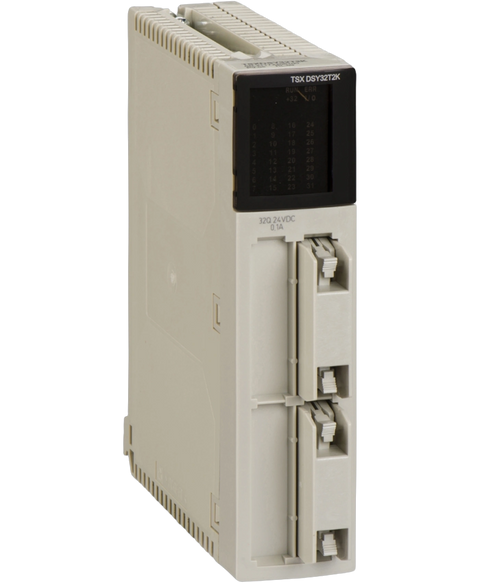

Schneider Electric TSXDSY32T2K
The TSXDSY32T2K from Schneider Electric is a versatile output module within the TSX Micro PLC series. This unit integrates 32 discrete solid-state outputs designed to operate efficiently within industrial environments. Each channel manages a current of up to 0.1 A, with a voltage specification of 24 V DC, ensuring compliance with the EN,IEC 61131-2 standards.
This Schneider Electric TSXDSY32T2K is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output range and is referenced internally as PartLogic SKU PL26801447298.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Discrete output module |
| Discrete output number | 32 |
| Discrete output type | Solid state protected |
| Discrete output voltage | 24 V DC positive conforming to EN/IEC 61131-2 19...30 V |
| Current per channel | 0.1 A |
| Maximum current per module | 3.2 A |
| Maximum leakage current | 0.1 mA, at 30 V |
| Maximum tungsten load | 1.2 W |
| [Ures] residual voltage | 1.5 V |
| Response time | 1.2 ms |
| Paralleling of outputs | Yes : 3 maximum |
| Output overvoltage protection | By transil diode |
| Reverse polarity protection | Reverse mounted diode |
| Output overload protection | Automatic trip |
| Short-circuit protection | Automatic trip |
| Minimum load impedance | 220 W at state 1 |
| isalotion resistance | > 10 MOhm 500 V |
| Power dissipation | (1.6 W + 0.1 W x No of outputs) |
| Product compatibility | Dial and Power |
| Marking | CE |
| Electrical connection | 2 connectors HE-10 |
| Current consumption | 140 mA at 5 V DC |
| Module format | Standard |
| Net weight | 0.3 kg |
| Dielectric strength | 1500 V 50/60 Hz 60 s |
| Standards | CSA C22.2 No 213 Class I Division 2 Group A | CSA C22.2 No 213 Class I Division 2 Group B | CSA C22.2 No 142 | CSA C22.2 No 213 Class I Division 2 Group D | 73/23/EEC | CSA C22.2 No 213 Class I Division 2 Group C | IEC 61131-2 | 89/336/EEC | UL 508 | 92/31/EEC | 93/68/EEC |
| Product certifications | ABS | RINA | GL | DNV | RMRS | LR | BV |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 417.0 g |
