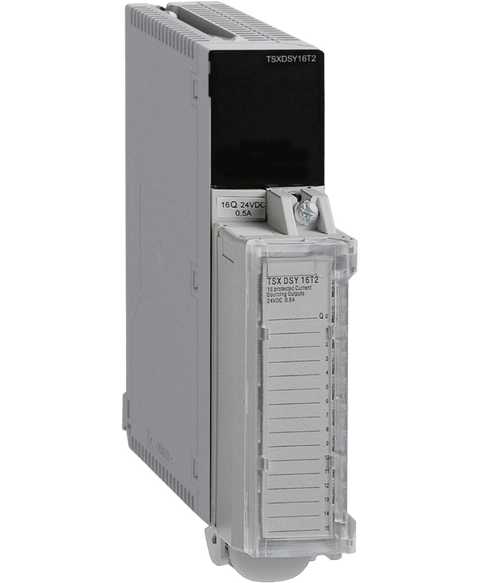

Schneider Electric TSXDSY16T2
The TSXDSY16T2 is a discrete output module from Schneider Electric's TSX Micro PLCs series. This module features 16 solid-state outputs and operates at a discrete output voltage of 24 V DC, which is suitable for various applications that require reliable performance.
This Schneider Electric TSXDSY16T2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital output range and is referenced internally as PartLogic SKU PL26911550729.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Discrete output module |
| Discrete output number | 16 |
| Discrete output type | Solid state protected |
| Discrete output voltage | 24 V DC positive conforming to EN/IEC 61131-2 19...30 V |
| Discrete output current | 0.5 A |
| Current per channel | 0.625 A |
| Maximum current per module | 7 A |
| Maximum leakage current | 0.5 mA at state 0 |
| [Ures] residual voltage | 1.2 V |
| Response time | 1.2 ms |
| Switching frequency | 0.5/LI² Hz |
| Output overvoltage protection | By transil diode |
| Reverse polarity protection | Reverse mounted diode |
| Output overload protection | Electronic tripping on reactivation |
| Short-circuit protection | Electronic tripping on reactivation |
| Preactuator voltage detection threshold | 16 V |
| Minimum load impedance | 48 W |
| isalotion resistance | > 10 MOhm 500 V |
| Power dissipation | (1.1 W + 0.75 W x No of outputs x current per module) |
| Marking | CE |
| Electrical connection | Screw terminal block |
| Current consumption | 80 mA at 5 V DC |
| Module format | Standard |
| Net weight | 0.34 kg |
| Dielectric strength | 1500 V 50/60 Hz 60 s |
| Standards | CSA C22.2 No 213 Class I Division 2 Group C | CSA C22.2 No 142 | 93/68/EEC | CSA C22.2 No 213 Class I Division 2 Group D | 89/336/EEC | CSA C22.2 No 213 Class I Division 2 Group A | UL 508 | IEC 61131-2 | CSA C22.2 No 213 Class I Division 2 Group B | 73/23/EEC | 92/31/EEC |
| Product certifications | DNV | RMRS | GL | BV | ABS | RINA | LR |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 453.0 g |
