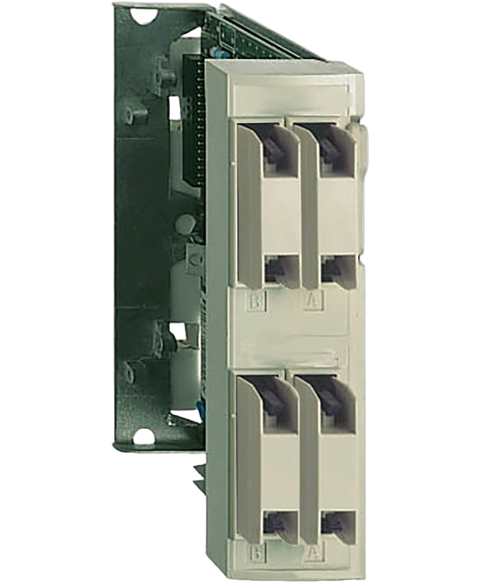

Schneider Electric TSXDMZ64DTK
The Schneider Electric TSXDMZ64DTK is an I,O base module ideal for integrating with control systems. Capable of accommodating 32 discrete input and output channels, it operates with an input voltage of 24 VDC for effective functionality.
This Schneider Electric TSXDMZ64DTK is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Mixed range and is referenced internally as PartLogic SKU PL26805422925.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete solid state I/O base DC |
| Discrete input number | 32 1 HE-10 connector |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Discrete input current | 3.5 mA |
| Discrete input type | Current sink |
| Discrete output number | 32 1 HE-10 connector |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.1 mA |
| Discrete output logic | Positive |
| Input voltage limits | >= 11 V at state 1 | < 5 V at state 0 |
| Current state 0 guaranteed | <= 1.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Input impedance | 6.3 Ohm |
| Response time | 0.1...7.5 ms from state 1 to state 0 input | 0.1...7.5 ms from state 0 to state 1 input | < 2.5 ms from state 1 to state 0 output | < 2.5 ms from state 0 to state 1 output |
| Input compatibility | 2-wire/3-wire proximity sensor |
| Current consumption | 197 mA |
| Power dissipation in W | 3.5 W by module output | 0.15 W by channel output | 5 W input |
| Output voltage limits | 19...30 V |
| Output current limits | 0.25 A |
| Maximum leakage current | 0.1 mA at state 0 |
| [Ures] residual voltage | 1.5 V |
| Load impedance ohmic | 220 Ohm |
| Switching frequency | < 0.5/LI² Hz |
| Output overvoltage protection | By zener diode |
| Output short-circuit protection | By current limiter and electronic circuit breaker |
| Reverse polarity protection | Reverse diode on power supply |
| Paralleling of outputs | Yes : 3 maximum |
| Isolation voltage | 1500 V for 1 s |
| Net weight | 0.41 kg |
| Standards | IEC 1131-2 Type 1 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 487.0 g |
