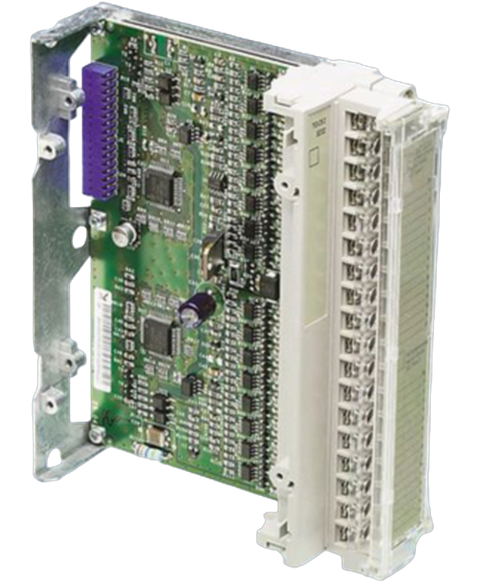

Schneider Electric TSXDMZ28DT
The TSXDMZ28DT model from Schneider Electric is an I,O module designed for use in TSX Micro PLC configurations. It operates at 24 V DC and consumes 132 mA of current, delivering 3.5 W of power dissipation per module and 0.15 W per channel.
This Schneider Electric TSXDMZ28DT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Mixed range and is referenced internally as PartLogic SKU PL26805661862.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | TSX Micro PLCs |
| Part Number | TSXDMZ28DT |
| EAN | 3389110540451 |
| Weight | 0.69 lbs (0.31 kg) |
| Current Consumption | 132 mA |
| Power Dissipation | 3.5 W by module, 0.15 W by channel |
| Operating Voltage | 24 V DC |
| Input Voltage Limits | >= 11 V at state 1, \u003C 5 V at state 0 |
| Output Voltage Limits | 19-30 V |
| Output Current Limits | 0.625 A |
| Maximum Leakage Current | 0.5 mA at state 0 |
| Load Impedance | 48 Ohm |
| Switching Frequency | \u003C 0.6/LI² Hz |
| Isolation Voltage | 1500 V for 1 second |
| Environmental Standards | IEC 1131-2 Type 1 |
| Operating Temperature | -20°C to 55°C |
| Brand | Schneider Electric |
