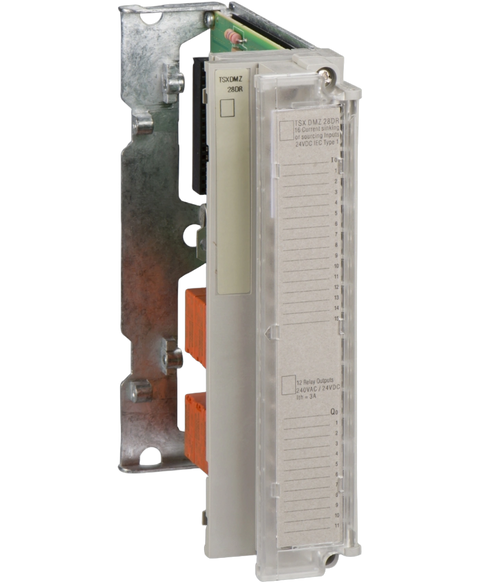

Schneider Electric TSXDMZ28DR
The TSXDMZ28DR, a discrete relay I,O base by Schneider Electric, is designed with various input and output specifications to facilitate robust control processes. It supports a wide range of output voltage and is suitable for numerous applications.
This Schneider Electric TSXDMZ28DR is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Mixed range and is referenced internally as PartLogic SKU PL26801443214.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Discrete relay I/O base |
| Discrete input number | 16 screw terminal block |
| Discrete input voltage | 24 V DC, discrete input logic: negative |
| Discrete input current | 9 mA |
| Input voltage limits | <= 8 V at state 1 |
| Current state 0 guaranteed | <= 1.5 mA |
| Current state 1 guaranteed | >= 2.5 mA |
| Input impedance | 4 Ohm |
| Response time | 0.1...7.5 ms input at state 0 to state 1 | 0.1...7.5 ms input at state 1 to state 0 | < 10 ms output |
| Input compatibility | 2-wire/3-wire proximity sensor |
| load type | Resistive |
| Current consumption | 160 mA positive | 131 mA negative |
| Power dissipation in W | 4.5 W |
| Output voltage limits | 19…264 V AC | 10...34 V DC |
| Contacts type and composition | NO |
| Power consumption in VA | 50 VA 24 V AC-12 resistive | 110 VA 48 V AC-12 resistive | 220 VA 110 V AC-12 resistive | 220 VA 220 V AC-12 resistive | 24 VA 24 V AC-15 inductive | 24 VA 48 V AC-15 inductive | 220 VA 220 V AC-15 inductive | 110 VA 110 V AC-15 inductive |
| Power consumption in W | 40 W 24 V DC-12 resistive | 24 W 24 V DC-13 inductive |
| Isolation voltage | 1500 V for 1 s |
| Insulation resistance | >= 10 mOhm |
| Net weight | 0.5 kg |
| Standards | IEC 1131-2 Type 1 |
| [Ith] conventional free air thermal current | 3 A |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 582.0 g |
