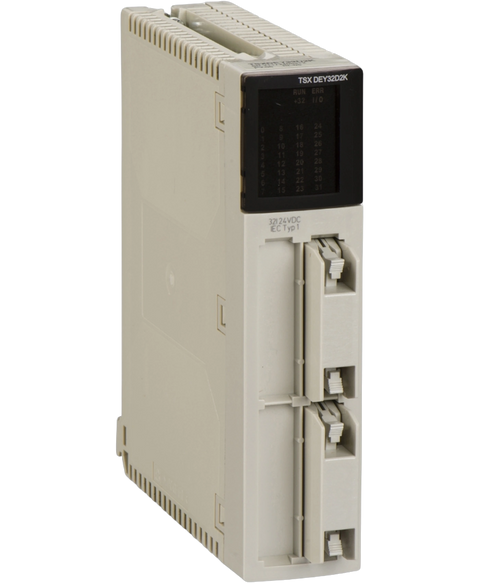

Schneider Electric TSXDEY32D2K
The TSXDEY32D2K module from Schneider Electric is a digital input module in the TSX Micro PLC series. It can handle 32 inputs at a nominal voltage of 24 V DC, making it suitable for various automation applications.
This Schneider Electric TSXDEY32D2K is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Digital input range and is referenced internally as PartLogic SKU PL26801401832.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Discrete input module |
| Discrete input number | 32 current sink isolated conforming to EN/IEC 61131-2 type 1 |
| Discrete input voltage | 24 V DC positive |
| Sensor power supply | 19…30 V |
| Discrete input current | 3.5 mA |
| Voltage state 1 guaranteed | >= 11 V |
| Current state 1 guaranteed | >= 3 mA |
| Voltage state 0 guaranteed | <= 5 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 6300 Ohm at state 1 |
| Response time | <= 7 ms | 4 ms |
| isalotion resistance | < 10 MOhm 500 V DC |
| Power dissipation | (1 W + 0.1 W x No of channels used) |
| Electrical connection | HE-10 connector |
| Marking | CE |
| Current consumption | 135 mA at 5 V DC | 160 mA at 24 V DC |
| Module format | Standard |
| Net weight | 0.3 kg |
| Dielectric strength | 1500 V AC at 50/60 Hz |
| Standards | CSA C22.2 No 213 Class I Division 2 Group B | IEC 60664 | CSA C22.2 No 142 | CSA C22.2 No 213 Class I Division 2 Group A | 92/31/EEC | EN/IEC 61131-2 | UL 508 | CSA C22.2 No 213 Class I Division 2 Group D | 93/68/EEC | CSA C22.2 No 213 Class I Division 2 Group C | 73/23/EEC | 89/336/EEC |
| Product certifications | LR | GL | BV | RMRS | RINA | ABS | DNV |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 412.0 g |
