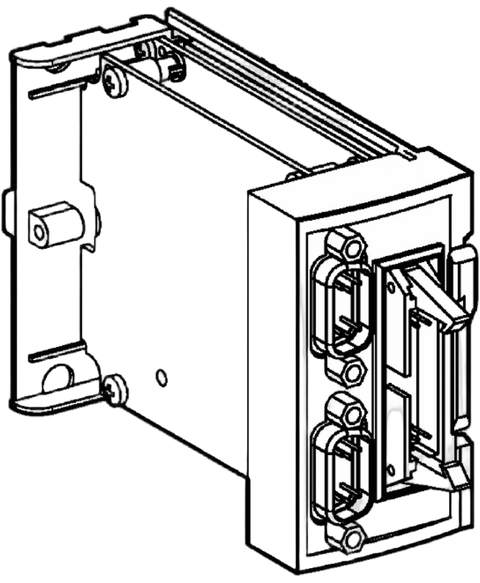

Schneider Electric TSXCTZ2A
TSX Micro - counter modules 2 input
This Schneider Electric TSXCTZ2A is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules range and is referenced internally as PartLogic SKU PL26805296880.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Counter modules |
| Counting input number | 2 |
| Counting frequency | 40 Hz |
| Network frequency | 100 Hz |
| Input voltage | 5 V DC | 24 V DC |
| Input current | 18 mA |
| Input voltage limits | >= 2.4 V at state 1 5 V DC | <= 1.2 V at state 0 5 V DC | >= 11 V at state 1 24 V DC | <= 5 V at state 0 24 V DC | 5.5 V 5 V DC | 19...30 V 24 V DC |
| Current state 0 guaranteed | <= 1 mA 5 V DC | <= 2 mA 24 V DC |
| Current state 1 guaranteed | >= 6 mA 24 V DC | >= 3.7 mA 5 V DC |
| Response time | 1.5 ms event processing | 8 ms master task |
| Sensor power supply | 2.5 V |
| Current consumption | 15 mA |
| Logic input | Positive |
| Input impedance | 0.27 Ohm at 5 V DC at Un | 1.4 Ohm at 24 V DC at Un | >= 0.44 Ohm at 5 V DC at U = 2.4 V |
| Input type | Resistive 24 V DC |
| Input compatibility | 2-wire/3-wire proximity sensor 24 V DC |
| Net weight | 0.21 kg |
| Standards | IEC 1131 Type 2 24 V DC |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 336.0 g |
