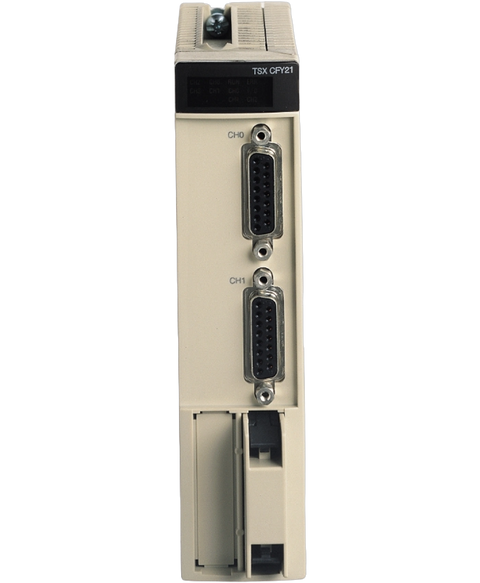

Schneider Electric TSXCTY2A
The TSXCTY2A component from Schneider Electric is an auxiliary output module designed for TSX Micro PLCs. This unit supports up to two channels with a counting frequency of 40 kHz and operates under the EN,IEC 61131 standards.
This Schneider Electric TSXCTY2A is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules range and is referenced internally as PartLogic SKU PL26805759217.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Counter modules |
| I/O modularity | 2 channels |
| Electrical circuit type | Auxiliary output conforming to EN/IEC 61131 |
| Counting frequency | 40 kHz |
| Power dissipation in W | 4.5…6 W |
| Cycle time | 5 ms |
| Discrete input logic | Current sink for auxiliary input (preset, enable and read) conforming to IEC 1131 Type 2 | Resistive for 2/3-wire proximity sensors PNP/NPN input conforming to IEC 1131 Type 2 | Resistive for encoder input |
| Input logic | Positive |
| Input compatibility | 2/3-wire proximity sensors PNP/NPN | Incremental encoder 10...30 V totem pole | Incremental encoder 5 V DC RS422 |
| Input voltage | 24 V 18 mA 2/3-wire proximity sensors PNP/NPN | 24 V 7 mA auxiliary input (preset, enable and read) | 5 V 18 mA encoder input |
| Input voltage limits | <= 5.5 V encoder input | 19...30 V 2/3-wire proximity sensors PNP/NPN | 19...30 V auxiliary input (preset, enable and read) |
| Voltage state 1 guaranteed | >= 11 V for 2/3-wire proximity sensors PNP/NPN | >= 11 V for auxiliary input (preset, enable and read) | >= 2.4 V for encoder input |
| Current state 1 guaranteed | >= 3.7 mA (encoder input) | >= 6 mA (2/3-wire proximity sensors PNP/NPN) | >= 6 mA (auxiliary input (preset, enable and read)) |
| Voltage state 0 guaranteed | <= 1.2 V for encoder input | <= 5 V for 2/3-wire proximity sensors PNP/NPN | <= 5 V for auxiliary input (preset, enable and read) |
| Current state 0 guaranteed | <= 1 mA (encoder input) | <= 2 mA (2/3-wire proximity sensors PNP/NPN) | <= 2 mA (auxiliary input (preset, enable and read)) |
| Response time | < 2.5 ms sensor voltage at loss of 24 V auxiliary input (preset, enable and read) |
| Input impedance | Encoder input: > 270 Ohm at U = 2.4 V | 2/3-wire proximity sensors PNP/NPN: 1400 Ohm at Un | Auxiliary input (preset, enable and read): 3400 Ohm at Un | Encoder input: 400 Ohm at Un |
| Output voltage | 24 V DC |
| nominal output current | 0.5 A |
| Output voltage limits | 19...30 V |
| Maximum voltage drop | <0.5 V at state 1 |
| Output compatibility | Positive logic DC inputs (resistance <= 15 kOhm) for auxiliary output |
| Maximum leakage current | 0.1 mA |
| Switching frequency | < 0.6/LI² Hz on inductive load load |
| Output overload protection | Thermal tripping via program or automatically | Current limiter |
| Output short-circuit protection | Thermal tripping via program or automatically | Current limiter |
| Output overvoltage protection | Zener diode |
| Reverse polarity protection | Reverse diode on supply |
| Checks | Sensor power supply |
| Current consumption | 280 mA at 5 V DC | 30 mA at 24 V DC |
| Module format | Standard |
| Local signalling | 1 LED (green) for module operating (RUN) | 1 LED (red) for external fault (I/O) | 1 LED (red) for internal fault, module failure (ERR) | 2 LEDs (green) for axis diagnostics available (CH.) |
| Electrical connection | 1 connector HE-10, 20 pins | 2 connectors SUB-D 15 |
| Net weight | 0.32 kg |
| Protective treatment | TC |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | <= 2000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 489.0 g |
