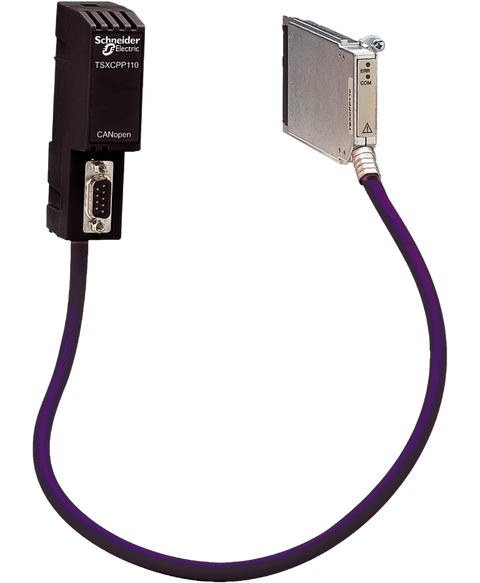

Schneider Electric TSXCPP110
The TSXCPP110 from Schneider Electric is a bus master card designed for use with the Modicon series. This PCMCIA card supports CANopen communication protocol, facilitating efficient data transmission and control in various applications.
This Schneider Electric TSXCPP110 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules range and is referenced internally as PartLogic SKU PL26805654848.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | CANopen bus master PCMCIA card |
| Software designation | CANopen standard |
| Software version | V4.02 |
| Additional information | Unauthorized on TSX P57 153M/154M processor |
| Electrical connection | 1 male connector SUB-D 9 + TAP junction CANopen bus connection |
| Product compatibility | Modicon Premium TSXP57 | Atrium TSXPCI or TPCX | Device conforms to CANopen standard profile |
| Memory type | PCMCIA card III |
| Bus conformity class | M00 |
| Communication port protocol | CANopen |
| Method of access | Master |
| Transmission rate | 800 kbit/s | 20 kbit/s | 10 kbit/s | 50 kbit/s | 500 kbit/s | 1000 kbit/s | 250 kbit/s | 125 kbit/s |
| Transmission support medium | 2 twisted shielded pairs cable |
| Communication service | Management of bus operating modes | Message handling (SDO) | PDO cyclic exchanges |
| Number of modules per PLC per PC | 1 Premium TSXP57 |
| Current consumption | 60 mA at 5 V DC |
| Marking | CE |
| Net weight | 0.23 kg |
| Ambient air temperature for operation | 0…60 °C |
| IP degree of protection | IP20 |
| Standards | DR 303-2 | DS 301 V4.02 |
| Product certifications | CSA | UL |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 17.0 cm |
| Package 1 Length | 22.0 cm |
| Package 1 Weight | 308.0 g |
