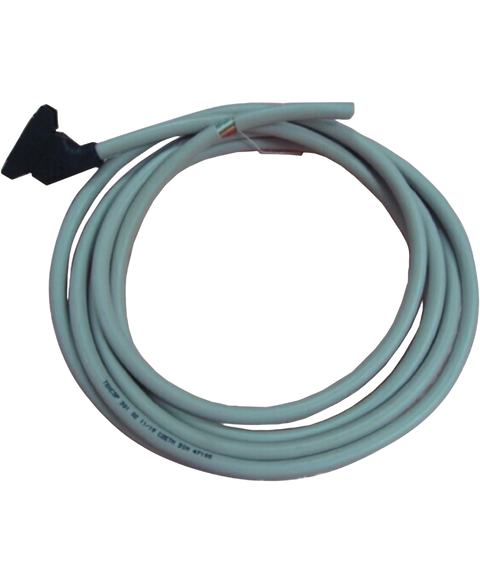

Schneider Electric TSXCDP301
The TSXCDP301 cable is designed for compatibility with Schneider Electric’s Modicon Premium PLC servodrives. This preformed cable measures 21.0 centimeters in length and is structured with a 20-way HE10 module connector for secure connections.
This Schneider Electric TSXCDP301 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Communication modules range and is referenced internally as PartLogic SKU PL26899080096.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium |
| Accessory / separate part designation | Preformed cable |
| Accessory / separate part type | Connecting cable |
| Accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Modicon Premium PLC | Servo drive |
| Product compatibility | TSXCCY1128 | TSXCTY4A | TSXCTY2C | TSXCFY11 | TSXCTY2A | TSXCFY21 |
| Cable length | 3 m |
| Electrical connection | 1 insulated connector HE10, 20 ways for module side | Free end with 4 colour-coded wires for PLC side |
| Wire section | 0.324 mm² |
| AWG gauge | AWG 22 |
| Net weight | 0.4 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 20.600 cm |
| Package 1 Length | 21.000 cm |
| Package 1 Weight | 448.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.788 kg |
