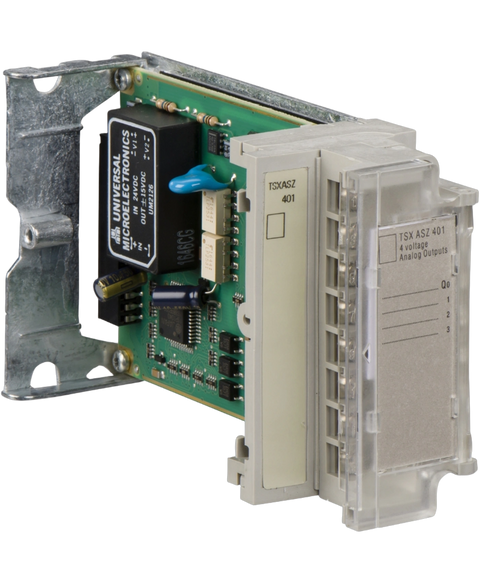

Schneider Electric TSXASZ401
The TSXASZ401 from Schneider Electric is an analog output module designed for use in the TSX Micro PLCs series. This module provides four channels for output, supports a response time of 400 microseconds, and functions with an output type of 0 to 10 V or +,- 10 V.
This Schneider Electric TSXASZ401 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Special modules range and is referenced internally as PartLogic SKU PL26805318392.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Analog output module |
| Number of channels | 4 |
| Analogue output type | +/- 10 V | 0...10 V |
| Analog/digital conversion | 11 bits 0...10 V | 11 bits + sign +/- 10 V |
| Response time | 400 µs |
| Output load | >= 2 Ohm |
| Protection type | Short-circuit |
| Temperature drift | 0.096 %/10 °C |
| Current consumption | 90 mA |
| Isolation voltage | 1000 V AC |
| Net weight | 0.2 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 636.0 g |
