Schneider Electric TSXASY800

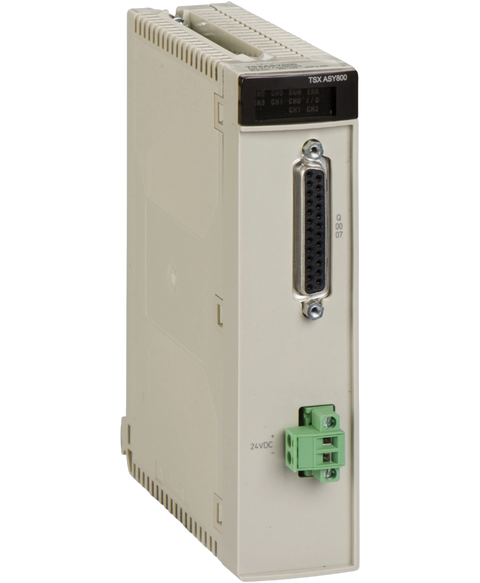

The Schneider Electric TSXASY800 is part of the TSX Micro PLC series, featuring eight analog output channels. This module supports current and voltage outputs, with specific ranges of 0 to 10 volts and 0 to 20 milliamps.
This Schneider Electric TSXASY800 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output range and is referenced internally as PartLogic SKU PL26801372018.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Analog output module |
| Analogue output number | 8 |
| Analogue output type | Current: 0...20 mA | Current: 4...20 mA | Voltage: +/- 10 V |
| Analog/digital conversion | 13 bits + sign +/- 10 V | 13 bits 0...20 mA | 13 bits 4...20 mA |
| Conversion time | 5 ms |
| Measurement resolution | 1.28 mV +/- 10 V | 2.56 µA 0...20 mA | 2.56 µA 4...20 mA |
| Electrical connection | 1 SUB-D 25 connector |
| Measurement error | 0.14 % of full scale +/- 10 V 25 °C | 0.21 % of full scale 0...20 mA 25 °C | 0.21 % of full scale 4...20 mA 25 °C | 0.28 % of full scale +/- 10 V 0...60 °C | 0.52 % of full scale 0...20 mA 0...60 °C | 0.52 % of full scale 4...20 mA 0...60 °C |
| Isolation between channels | Common point |
| Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms |
| Protection type | Short-circuit protection | Overload protection |
| Output voltage limits | <= 30 V |
| Load impedance ohmic | < 600 Ohm 0...20 mA | < 600 Ohm 4...20 mA | > 1000 Ohm +/- 10 V |
| Maximum load inductance | 300 µH |
| Maximum load capacitance | 0.1 µF |
| Marking | CE |
| Current consumption | 200 mA at 5 V DC | 300 mA at 24 V DC |
| Module format | Standard |
| Terminals description PLC n°1 | (16)OUT_ANA_CUR#1 | (13)IN_ANA_STD# | (24)OUT_ANA_VOLT#7 | (8)OUT_ANA_CUR#4 | (20)OUT_ANA_COM#4 | (1)OUT_ANA_VOLT#0 | (17)OUT_ANA_COM#2 | (4)OUT_ANA_VOLT#2 | (9)OUT_ANA_COM#5 | (11)OUT_ANA_CUR#6 | (19)OUT_ANA_CUR#3 | PW_NEG# | (25)OUT_ANA_CUR#7 | (3)OUT_ANA_COM#1 | (12)OUT_ANA_COM#7 | (5)OUT_ANA_CUR#2 | (6)OUT_ANA_COM#3 | (15)OUT_ANA_VOLT#1 | (18)OUT_ANA_VOLT#3 | (22)OUT_ANA_CUR#5 | (10)OUT_ANA_VOLT#6 | PW_POS# | (14)OUT_ANA_COM#0 | (23)OUT_ANA_COM#6 | (2)OUT_ANA_CUR#0 | (7)OUT_ANA_VOLT#4 | (21)OUT_ANA_VOLT#5 |
| Net weight | 0.46 kg |
| Standards | 93/68/EEC | CSA C22.2 No 213 Class I Division 2 Group A | CSA C22.2 No 142 | 73/23/EEC | CSA C22.2 No 213 Class I Division 2 Group B | 89/336/EEC | CSA C22.2 No 213 Class I Division 2 Group D | UL 508 | IEC 61131-2 | 92/31/EEC | CSA C22.2 No 213 Class I Division 2 Group C |
| Product certifications | BV | RINA | DNV | LR | ABS | RMRS | GL |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 465.0 g |
