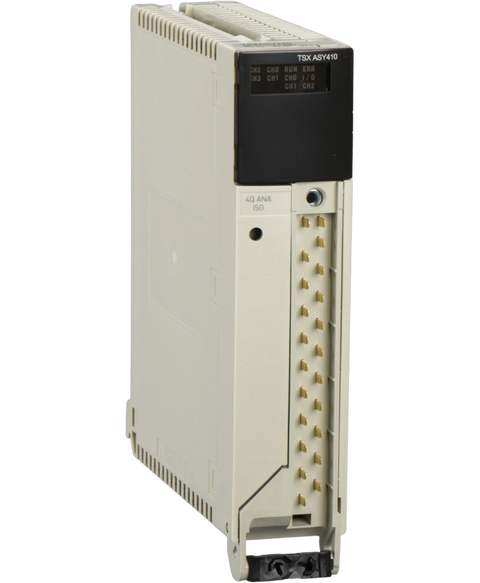

Schneider Electric TSXASY410
The TSXASY410 from Schneider Electric is designed as part of the TSX Micro PLCs series. This unit, weighing 200 grams, is built to handle various industrial automation tasks efficiently with a compact size of 125 x 100 x 40 mm.
This Schneider Electric TSXASY410 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog output range and is referenced internally as PartLogic SKU PL26801443780.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Analog output module |
| Analogue output number | 4 |
| Analogue output type | Current: 0...20 mA | Current: 4...20 mA | Voltage: +/- 10 V |
| Analog/digital conversion | 11 bits + sign |
| Conversion time | 2.5 ms |
| Measurement resolution | 10.25 µA 0...20 mA | 10.25 µA 4...20 mA | 5.12 mV +/- 10 V |
| Electrical connection | Screw terminal block |
| Measurement error | 0.45 % of full scale +/- 10 V 25 °C | 0.52 % of full scale 0...20 mA 25 °C | 0.52 % of full scale 4...20 mA 25 °C | 0.75 % of full scale +/- 10 V 0...60 °C | 0.98 % of full scale 0...20 mA 0...60 °C | 0.98 % of full scale 4...20 mA 0...60 °C |
| Isolation between channels | 1500 Vrms |
| Isolation between channels and bus | 1500 Vrms |
| Isolation between channels and ground | 500 V |
| Protection type | Overload protection | Short-circuit protection |
| Output voltage limits | <= 30 V |
| Load impedance ohmic | < 600 Ohm 0...20 mA | < 600 Ohm 4...20 mA | > 1000 Ohm +/- 10 V |
| Maximum load inductance | 300 µH |
| Maximum load capacitance | 0.1 µF |
| Marking | CE |
| Current consumption | 900 mA at 5 V DC |
| Module format | Standard |
| Terminals description PLC n°1 | (14)OUT_ANA_SHIELD# | (19)OUT_ANA_SHIELD# | (18)OUT_ANA_CUR#3 | (1)OUT_ANA_VOLT#0 | (5)OUT_ANA_SHIELD# | (16)OUT_ANA_VOLT#3 | (15)OUT_ANA_SHIELD# | (11)OUT_ANA_VOLT#2 | (12)OUT_ANA_COM#2 | (20)OUT_ANA_SHIELD# | (6)OUT_ANA_VOLT#1 | (7)OUT_ANA_COM#1 | (2)OUT_ANA_COM#0 | (13)OUT_ANA_CUR#2 | (4)OUT_ANA_SHIELD# | (8)OUT_ANA_CUR#1 | (9)OUT_ANA_SHIELD# | (3)OUT_ANA_CUR#0 | (17)OUT_ANA_COM#3 | (10)OUT_ANA_SHIELD# |
| Net weight | 0.35 kg |
| Standards | CSA C22.2 No 213 Class I Division 2 Group B | CSA C22.2 No 213 Class I Division 2 Group C | CSA C22.2 No 142 | 92/31/EEC | 89/336/EEC | CSA C22.2 No 213 Class I Division 2 Group A | 93/68/EEC | IEC 61131-2 | 73/23/EEC | CSA C22.2 No 213 Class I Division 2 Group D | UL 508 |
| Product certifications | GL | ABS | RINA | DNV | RMRS | LR | BV |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 453.0 g |
