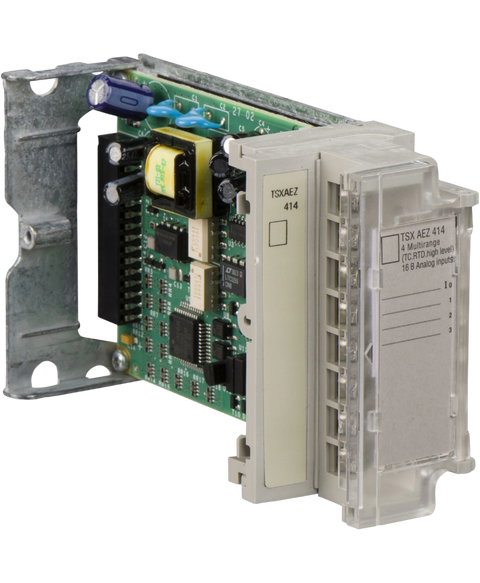

Schneider Electric TSXAEZ414
The TSXAEZ414 from Schneider Electric is an input module tailored for analog signal processing. It includes four high-level analog inputs and operates with a 16-bit resolution, suitable for precise readings in various applications.
This Schneider Electric TSXAEZ414 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26805575221.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Analog input module |
| Number of channels | 4 |
| Analogue input type | High level | Temperature probe | Thermocouple |
| Analog/digital conversion | 16 bits |
| Acquisition period | 520 ms |
| Temperature drift | 0.08 %/10 °C voltage circuit | 0.01 %/10 °C current circuit |
| Input impedance | 10 Ohm |
| Current consumption | 85 mA |
| Isolation voltage | 500 V AC |
| Net weight | 0.21 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 330.0 g |
