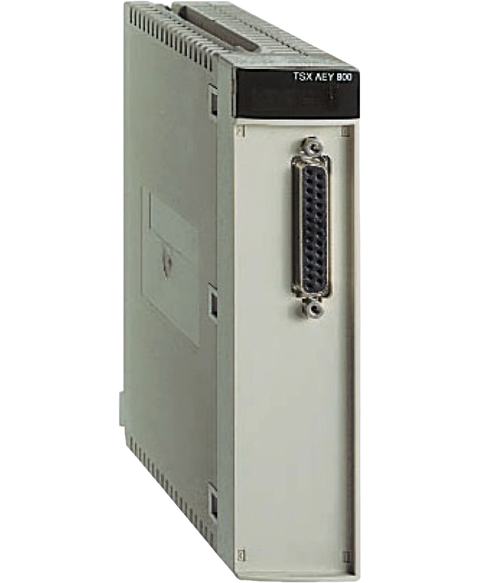

Schneider Electric TSXAEY810
The TSXAEY810 serves as an analog input module within the Modicon Premium series from Schneider Electric. This module supports up to 8 analog inputs, enabling precise data acquisition for control applications.
This Schneider Electric TSXAEY810 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26805674049.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon Premium Automation platform |
| Product or component type | Analog input module |
| Input level | Low level |
| Analogue input number | 8 |
| Analogue input type | Current 0...20 mA | Current 4...20 mA | Voltage +/- 10 V | Voltage 0...10 V | Voltage 0...5 V | Voltage 1...5 V |
| Analog/digital conversion | 16 bits |
| Nominal read cycle time | 29.7 ms |
| Fast read cycle time | 3.3 ms + 3.3 ms x number of channels used |
| Measurement error | 0.12 % of full scale 0...20 mA 0...60 °C | 0.12 % of full scale 4...20 mA 0...60 °C | 0.13 % of full scale 0...5 V 25 °C | 0.13 % of full scale 1...5 V 25 °C | 0.142 % of full scale 0...20 mA 25 °C | 0.142 % of full scale 4...20 mA 25 °C | 0.191 % of full scale 0...5 V 0...60 °C | 0.191 % of full scale 1...5 V 0...60 °C | 0.244 % of full scale +/- 10 V 25 °C | 0.244 % of full scale 0...10 V 25 °C | 0.305 % of full scale +/- 10 V 0...60 °C | 0.305 % of full scale 0...10 V 0...60 °C |
| Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms |
| Isolation between channels | +/- 200 V |
| Common mode between channels | +/- 200 |
| Input overvoltage protection | -15…15 V at state 0 250 Ohm | -30…30 V at state 1 250 Ohm |
| Electrical connection | 1 connector SUB-D 25 |
| Overcurrent | -30…30 mA at state 1 250 kOhm |
| Marking | CE |
| Current consumption | 475 mA at 5 V DC |
| Module format | Standard |
| Net weight | 0.33 kg |
| Standards | IEC 1131 |
| Product certifications | ABS | RINA | LR | BV | DNV | GL | RMRS |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 434.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.936 kg |
