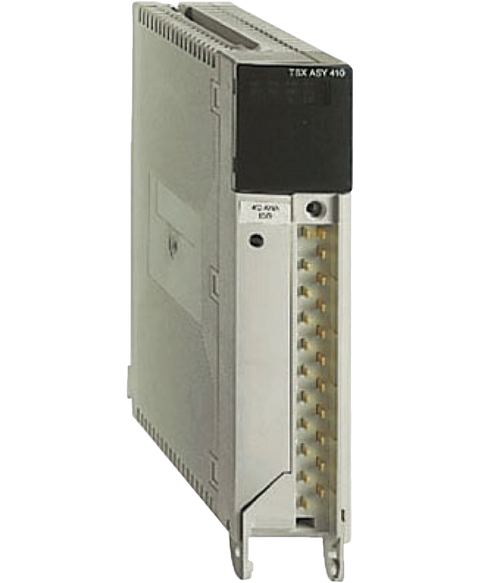

Schneider Electric TSXAEY414
The TSXAEY414 from Schneider Electric is a TSX Micro PLC equipped for diverse input types. It supports a range of measurements and features comprehensive voltage isolation, ensuring high operational integrity.
This Schneider Electric TSXAEY414 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26801443078.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$487.63
(inc. GST)
In Stock
| Range of product | Modicon Premium Automation platform |
| Product or component type | Analog input module |
| Input level | Low level |
| Analogue input number | 4 |
| Analogue input type | Current 4...20 mA | Voltage +/- 10 V | Voltage 0...10 V | Voltage 0...5 V | Voltage 1...5 V | Thermocouple thermocouple B | Thermocouple thermocouple E | Thermocouple thermocouple J | Thermocouple thermocouple K | Thermocouple thermocouple L | Thermocouple thermocouple N | Thermocouple thermocouple R | Thermocouple thermocouple S | Thermocouple thermocouple T | Thermocouple thermocouple U | Resistor 0...3850 Ohm | Resistor 0...400 Ohm | Temperature probe Ni 1000 2 wires | Temperature probe Ni 1000 4 wires | Temperature probe Pt 100 2 wires | Temperature probe Pt 100 4 wires | Temperature probe Pt 1000 2 wires | Temperature probe Pt 1000 4 wires | Voltage - 13...63 mV | Voltage +/- 5 V |
| Analog/digital conversion | 16 bits |
| Nominal read cycle time | 550 ms |
| Measurement error | 0.13 % of full scale 0...400 Ohm 25 °C | 0.16 % of full scale 0...10 V 25 °C | 0.19 % of full scale - 13...63 mV 25 °C | 0.22 % of full scale 0...3850 Ohm 25 °C | 0.22 % of full scale 0...5 V 25 °C | 0.27 % of full scale +/- 10 V 25 °C | 0.27 % of full scale +/- 5 V 25 °C | 0.27 % of full scale 0...400 Ohm 0...60 °C | 0.27 % of full scale 1...5 V 25 °C | 0.39 % of full scale 0...10 V 0...60 °C | 0.44 % of full scale - 13...63 mV 0...60 °C | 0.45 % of full scale 0...5 V 0...60 °C | 0.45 % of full scale 4...20 mA 25 °C | 0.48 % of full scale 0...3850 Ohm 0...60 °C | 0.5 % of full scale +/- 10 V 0...60 °C | 0.5 % of full scale +/- 5 V 0...60 °C | 0.56 % of full scale 1...5 V 0...60 °C | 0.86 % of full scale 4...20 mA 0...60 °C | 1.5 °C thermocouple B external 25 °C | 1.5 °C thermocouple E external 25 °C | 1.5 °C thermocouple T external 25 °C | 1.5 °C thermocouple U external 25 °C | 1.8 °C thermocouple J external 25 °C | 10.5 °C thermocouple K internal 0...60 °C | 11 °C thermocouple R internal 0...60 °C | 12 °C thermocouple S internal 0...60 °C | 2 °C thermocouple L external 25 °C | 2 °C thermocouple N external 25 °C | 2.3 °C thermocouple K external 25 °C | 3.1 °C thermocouple U external 0...60 °C | 3.2 °C thermocouple E external 0...60 °C | 3.2 °C thermocouple R external 25 °C | 3.2 °C thermocouple T external 0...60 °C | 3.4 °C thermocouple S external 25 °C | 3.5 °C thermocouple B external 0...60 °C | 3.5 °C thermocouple B internal 25 °C | 3.8 °C thermocouple J external 0...60 °C | 4.1 °C thermocouple L external 0...60 °C | 4.3 °C thermocouple N external 0...60 °C | 4.7 °C thermocouple K external 0...60 °C | 5.4 °C thermocouple U internal 25 °C | 6 °C thermocouple N internal 25 °C | 6 °C thermocouple R internal 25 °C | 6.1 °C thermocouple E internal 25 °C | 6.6 °C thermocouple S internal 25 °C | 6.6 °C thermocouple T internal 25 °C | 7.3 °C thermocouple J internal 25 °C | 7.3 °C thermocouple U internal 0...60 °C | 7.5 °C thermocouple L internal 25 °C | 7.7 °C thermocouple R external 0...60 °C | 7.8 °C thermocouple K internal 25 °C | 8.1 °C thermocouple B internal 0...60 °C | 8.1 °C thermocouple E internal 0...60 °C | 8.5 °C thermocouple S external 0...60 °C | 8.7 °C thermocouple N internal 0...60 °C | 8.8 °C thermocouple T internal 0...60 °C | 9.5 °C thermocouple J internal 0...60 °C | 9.8 °C thermocouple L internal 0...60 °C | 1 °C Ni 1000 25 °C | 1.2 °C Pt 100 25 °C | 2 °C Ni 1000 0...60 °C | 2.4 °C Pt 100 0...60 °C | 2.5 °C Pt 1000 25 °C | 5 °C Pt 1000 0...60 °C |
| Isolation between channels and bus | 1780 Vrms |
| Isolation between channels and ground | 1780 Vrms |
| Isolation between channels | 2830 Vrms |
| Common mode between channels | 415 V AC or 200 V DC |
| Common mode between channels and earth | 240 V AC or 110 V DC |
| Input overvoltage protection | -15…15 V at state 0 250 Ohm | -30…30 V at state 1 250 Ohm |
| Electrical connection | Screw terminal block |
| Overcurrent | -30…30 mA at state 1 250 kOhm |
| Marking | CE |
| Current consumption | 660 mA at 5 V DC |
| Module format | Standard |
| Net weight | 0.32 kg |
| Standards | DIN 43760 | IEC 584 | IEC 751 | DIN 43710 | NFC 42-330 | IEC 1131 |
| Product certifications | DNV | BV | ABS | RMRS | RINA | GL | LR |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Protective treatment | TC |
| IP degree of protection | IP20 |
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 455.0 g |
