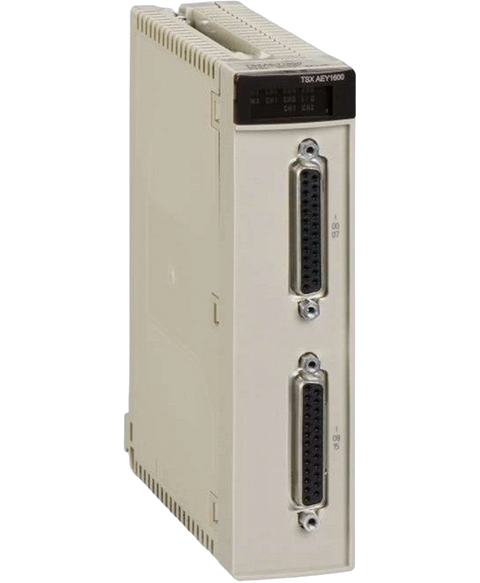

Schneider Electric TSXAEY1600
The TSXAEY1600 from Schneider Electric is a standard TSX Micro PLCs series module. This model can operate efficiently across a temperature range from 0 to 60°C and handle storage temperatures from -25 to 70°C. Relative humidity for optimal operation lies between 10% and 95% without condensation.
This Schneider Electric TSXAEY1600 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Analog input range and is referenced internally as PartLogic SKU PL26805296989.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | TSX Micro PLCs |
| Part Number | TSXAEY1600 |
| EAN | 3389110726114 |
| Weight | 1.00 lbs (0.45 kg) |
| Relative Humidity | 10 to 95% without condensation for operation |
| Storage Temperature | -25 to 70°C |
| Operating Temperature | 0 to 60°C |
| Module Format | Standard |
| Current Consumption | 270 mA at 5 V DC |
| Electrical Connection | 2 connectors SUB-D 25 |
| Input Overvoltage Protection | -15 to 15 V at state 0, -30 to 30 V at state 1 |
| Isolation | 1000 Vrms between channels and bus, 1000 Vrms between channels and ground |
| Measurement Error | 0.1% of full scale at 25°C for various voltage ranges |
| Fast Read Cycle Time | 3 ms + 3 ms per channel used |
| Nominal Read Cycle Time | 51 ms |
| Input Types | Current (0-20 mA, 4-20 mA), Voltage (+/- 10 V, 0-10 V, 0-5 V, 1-5 V) |
| Analog/Digital Conversion | 12 bits |
| Analog Input Channels | 16 high-level inputs |
| Brand | Schneider Electric |
