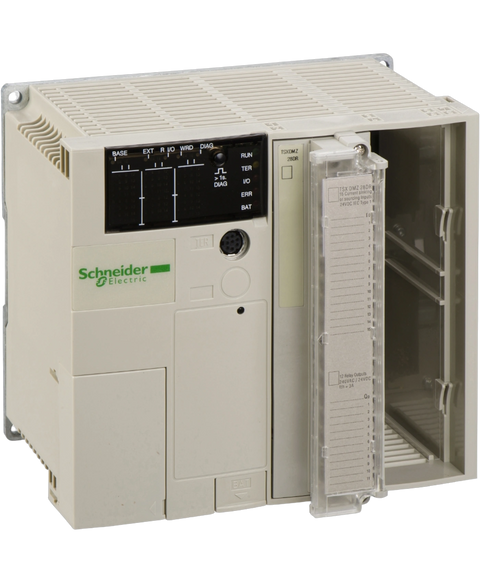

Schneider Electric TSX3721001
The Schneider Electric TSX3721001 is a controller module from the TSX Micro PLCs series equipped with a real-time clock. It features substantial memory capacities, including internal RAM for data and program storage and flash memory. This module supports complex applications and various communication protocols, ensuring flexibility in system design.
This Schneider Electric TSX3721001 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modicon premium > Processors range and is referenced internally as PartLogic SKU PL26801386462.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90…264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Output current | 0.5 A |
| Number of slots | 3 |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s | 1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With |
| Memory description | Flash 15 Kwords data | Internal RAM 20 Kwords data | Internal RAM (with PCMCIA card) 128 Kwords program and data | Internal RAM 128 Kwords data storage |
| Maximum size of object areas | 128 %KWi constant words | 256 %Mi | 1 %MWi internal words |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card | 4.5 µs arithmetic REAL floating without PCMCIA card | 0.19 µs Boolean with PCMCIA card | 4.5 µs arithmetic REAL floating with PCMCIA card |
| Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card | 0.27 65 % Boolean and 35 % numerical without PCMCIA card | 4 100 % Boolean with PCMCIA card | 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
| Application structure | 16 event tasks | 1 master task | 1 fast task |
| System overhead | 1.6 ms for master task |
| Protection type | Overload protection | Short-circuit |
| Total useful secondary power | 16 W |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 | Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 | Resistance to fast transient conforming to IEC 1000-4-4 level 3 | Immunity to impulse waves conforming to IEC 1000-4-5 | Damped oscillatory wave conforming to IEC 1000-4-12 | Immunity to electromagnetic interference conforming to IEC 61131-2 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 5…95 % without condensation for operation |
| Operating altitude | 0...2000 m |
| Width | 341.4 mm |
| Height | 151 mm |
| Depth | 152 mm |
| Net weight | 1.72 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.0 cm |
| Package 1 Width | 17.0 cm |
| Package 1 Length | 24.0 cm |
| Package 1 Weight | 1.824 kg |
