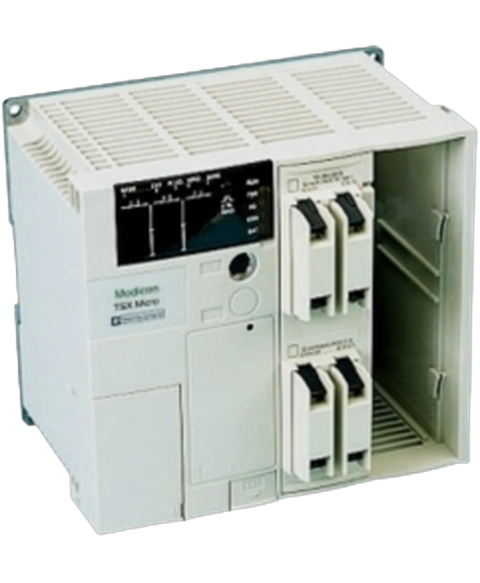

Schneider Electric TSX3710101
The TSX3710101 from Schneider Electric is a micro PLC engineered for versatile automation solutions. It operates within a 100-240 V AC voltage range and supports input currents from 2 mA up to 60 A, adapting to various project demands.
This Schneider Electric TSX3710101 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Modicon premium > Processors range and is referenced internally as PartLogic SKU PL26805318184.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Manufacturer | Schneider Electric |
| Product Line | TSX Micro PLCs |
| Part Number | TSX3710101 |
| UPC | 785901885115 |
| Weight | 1.00 lbs (0.45 kg) |
| Voltage Rating | 100-240 V AC |
| Input Current | 2 mA-60 A |
| Temperature Range | 32-140 °F (0-60 °C) |
| Frequency | 50/60 Hz |
| Slots | 2 |
| Output Capacity | Maximum output current of 0.5 A |
| Analog Inputs | 8 slots with a range of 0 to 10 V |
| Analog Outputs | 1 slot supporting 0 to 10 V |
| Communication Interfaces | 1 serial link (TER/AUX) Uni-Telway rated at 19.2 kbit/s, and 1 Modbus RTU rated at 19.2 kbit/s |
| Memory | Flash memory (15 Kwords) and internal RAM (20 Kwords) |
| Expandable Memory | Internal RAM can be expanded to 128 Kwords with a PCMCIA card |
| Execution Time | 0.13 µs (Boolean operations) to 4.5 µs (arithmetic REAL floating operations) |
| Application Structure | Supports 1 fast task, 1 master task, and 16 event tasks |
| Humidity Range | 10% to 95% without condensation |
| Physical Dimensions | 13.44 x 5.94 x 5.98 inches |
| Brand | Schneider Electric |
