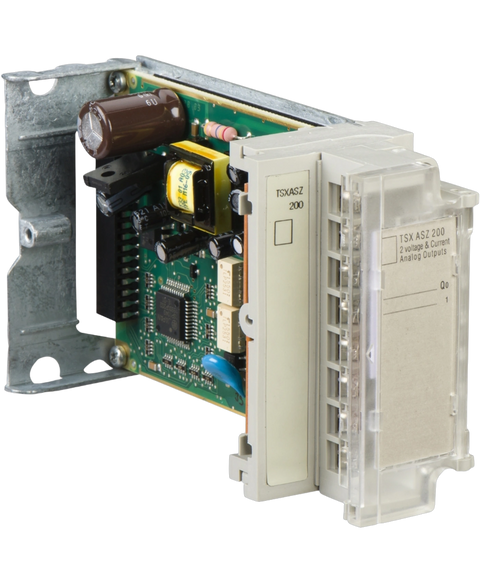

Schneider Electric TSX-ASZ-200
Schneider Electric TSXASZ200 analog output module, TSX Micro, +,-10V, 0-20mA, 4-20mA.
This Schneider Electric TSX-ASZ-200 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Special modules range and is referenced internally as PartLogic SKU PL26805522894.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Analog output module |
| Number of channels | 2 |
| Analogue output type | 0...20 mA or 4...20 mA | +/- 10 V |
| Analog/digital conversion | 11 bits + sign 0...20 mA or 4...20 mA | 11 bits +/- 10 V |
| Measurement resolution | 0...20 mA or 4...20 mA | +/- 10 V |
| Output load | <= 0.6 Ohm 0...20 mA or 4...20 mA | >= 1 Ohm +/- 10 V |
| Protection type | Open-circuit 0...20 mA or 4...20 mA |
| Temperature drift | 0.107 %/10 °C 0...20 mA or 4...20 mA | 0.083 %/10 °C +/- 10 V |
| Current consumption | 150 mA |
| Isolation voltage | 1500 V AC |
| Net weight | 0.2 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 636.0 g |
