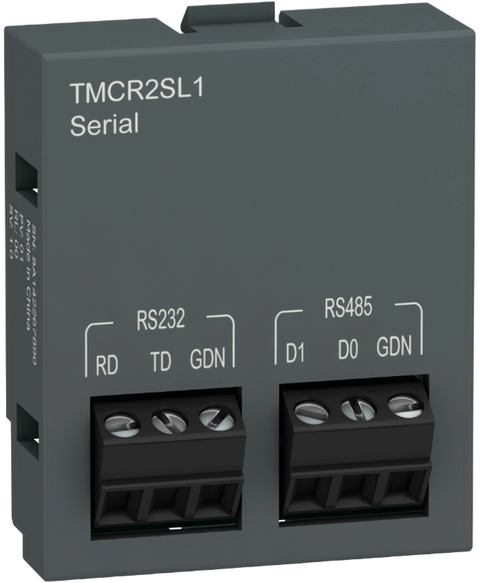

Schneider Electric TMCR2SL1
cartridge M200 - 1 serial line - communication extension
This Schneider Electric TMCR2SL1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26902274412.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Easy Modicon M200 |
| Product or component type | Serial line cartridge |
| Product compatibility | Easy Modicon M200 |
| Integrated connection type | Non isolated serial link - screw terminal block for RS232 | Non isolated serial link - screw terminal block for RS485 |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232C |
| Communication port protocol | Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Insulation | Non-insulated between lines and internal logic |
| Height | 41 mm |
| Depth | 15 mm |
| Width | 35 mm |
| Net weight | 0.012 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.6 cm |
| Package 1 Width | 7.0 cm |
| Package 1 Length | 3.5 cm |
| Package 1 Weight | 20.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 75 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.07 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 1200 |
| Package 3 Height | 75 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 57 kg |
