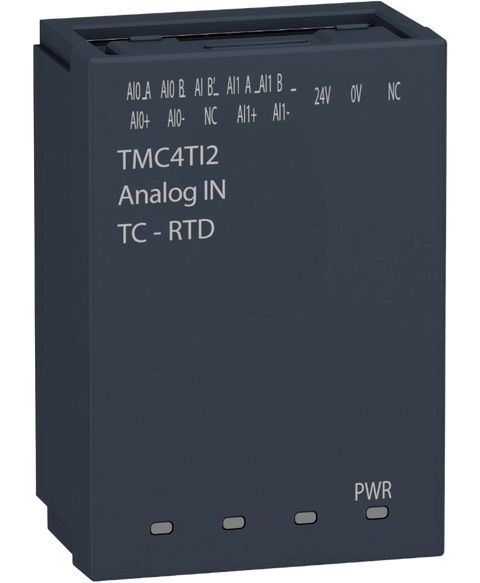

Schneider Electric TMC4TI2
Cartridge, 2 analogue temp i,p, 0.02A; current rating:20mA; product range:- rohs compliant: yes
This Schneider Electric TMC4TI2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26906131366.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M241 |
| Product or component type | Analogue input cartridge |
| Product compatibility | Modicon M241C |
| Analogue input number | 2 |
| Analogue input type | thermocouple - 200...1000 °C with thermocouple J | thermocouple - 200...1300 °C with thermocouple K | thermocouple 0...1760 °C with thermocouple R | thermocouple 0...1760 °C with thermocouple S | thermocouple 0...1820 °C with thermocouple B | thermocouple - 200...400 °C with thermocouple T | thermocouple - 200...1300 °C with thermocouple N | thermocouple - 200...800 °C with thermocouple E | Ni 100/Ni 1000 temperature probe - 60...180 °C | Pt 100 temperature probe - 200...850 °C | Pt 1000 temperature probe - 200...600 °C |
| Analogue input resolution | 14 bits |
| LSB value | 0.1 °C |
| Sampling duration | 100 ms |
| Absolute accuracy error | +/- 0.5 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe | +/- 0.2 % of full scale at 25 °C for thermocouple K - 200...1300 °C | +/- 0.2 % of full scale at 25 °C for thermocouple J - 200...1000 °C | +/- 0.2 % of full scale at 25 °C for thermocouple E - 200...800 °C | +/- 0.2 % of full scale at 25 °C for thermocouple T - 200...400 °C | +/- 0.2 % of full scale at 25 °C for thermocouple N - 200...1300 °C | +/- 0.2 % of full scale at 25 °C for thermocouple B 250...400 °C | +/- 0.1 % of full scale at 25 °C for thermocouple B 400...1280 °C | +/- 0.2 % of full scale at 25 °C for thermocouple R, S 0...1760°C |
| Temperature drift | +/- 0.008 %FS/°C |
| Repeat accuracy | +/- 0.1 %FS |
| Non-linearity | +/- 0.05 %FS |
| Cross talk | 80 dB |
| Type of cable | Twisted shielded pairs cable |
| Electrical connection | 1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for outputs and supply |
| Maximum cable distance between devices | Twisted shielded pairs cable: <30 m for input |
| Insulation | Between input and internal logic at 500 V DC | Non-insulated between inputs |
| Supply voltage limits | 20.4…28.8 V |
| Local signalling | 1 LED (green) for PWR |
| Height | 50 mm |
| Depth | 21 mm |
| Width | 34 mm |
| Net weight | 0.055 kg |
| Permissible continuous overload | 6 V |
| Input impedance | >= 1 MOhm |
| Immunity to microbreaks | 10 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.600 cm |
| Package 1 Width | 8.100 cm |
| Package 1 Length | 11.000 cm |
| Package 1 Weight | 68.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.360 kg |
