Schneider Electric TMC4AQ2

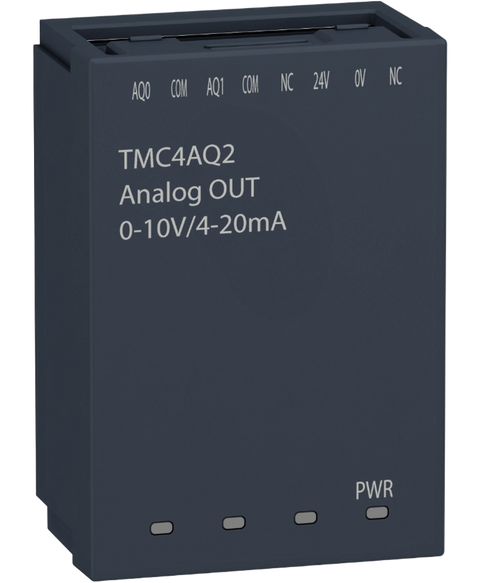

Analogue output cartridge, modicon m241, 2 analog outputs
This Schneider Electric TMC4AQ2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805557947.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M241 |
| Product or component type | Analogue output cartridge |
| Product compatibility | Modicon M241C |
| Analogue output number | 2 |
| Analogue output type | Current: 4...20 mA | Voltage: 0...10 V |
| Analogue output resolution | 16 bits |
| LSB value | 1 mV 0...10 V voltage | 2 µA 4...20 mA current |
| load type | Resistive |
| Load impedance ohmic | <= 500 Ohm current | >= 2 kOhm voltage |
| Conversion time | 10 ms + 1 controller cycle time |
| Stabilisation time | 10 ms |
| Absolute accuracy error | +/- 0.2 % of full scale at 25 °C |
| Temperature drift | +/- 0.006 %FS/°C |
| Repeat accuracy | +/- 0.5 %FS |
| Non-linearity | +/- 0.05 %FS |
| Output ripple | +/- 20 mV |
| Cross talk | 80 dB |
| Type of cable | Twisted shielded pairs cable |
| Electrical connection | 1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for outputs and supply |
| Maximum cable distance between devices | Twisted shielded pairs cable: <30 m for input |
| Insulation | Between output and internal logic at 500 V DC | Non-insulated between outputs |
| Supply voltage limits | 20.4…28.8 V |
| Local signalling | 1 LED (green) for PWR |
| Height | 50 mm |
| Depth | 21 mm |
| Width | 34 mm |
| Net weight | 0.055 kg |
| Immunity to microbreaks | 10 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 3.0 cm |
| Package 1 Length | 3.5 cm |
| Package 1 Weight | 74.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.042 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 432 |
| Package 3 Height | 75 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 44 kg |
