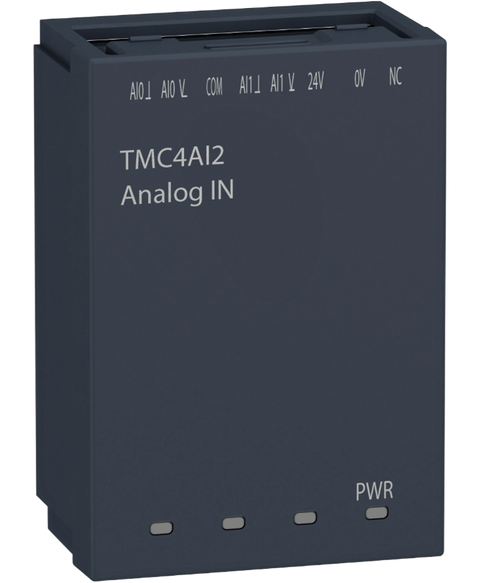

Schneider Electric TMC4AI2
Cartridge, 2 analogue i,p, 12bit, 0.02A; current rating:20mA; product range:- rohs compliant: yestmc4ai2
This Schneider Electric TMC4AI2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805543212.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M241 |
| Product or component type | Analogue input cartridge |
| Product compatibility | Modicon M241C |
| Analogue input number | 2 |
| Analogue input type | current 4...20 mA | current 0...20 mA | voltage 0...10 V |
| Analogue input resolution | 12 bits |
| LSB value | 1 mVvoltage | 2 µAcurrent |
| Sampling duration | 10 ms |
| Absolute accuracy error | +/- 0.2 % of full scale at 25 °C |
| Temperature drift | +/- 0.006 %FS/°C |
| Repeat accuracy | +/- 0.2 %FS |
| Non-linearity | +/- 0.05 %FS |
| Cross talk | 80 dB |
| Type of cable | Twisted shielded pairs cable |
| Electrical connection | 1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for inputs and supply |
| Maximum cable distance between devices | Twisted shielded pairs cable: <30 m for input |
| Insulation | Between input and internal logic at 500 V DC | Non-insulated between inputs |
| Supply voltage limits | 20.4…28.8 V |
| Local signalling | 1 LED (green) for PWR |
| Height | 50 mm |
| Depth | 21 mm |
| Width | 34 mm |
| Net weight | 0.055 kg |
| Permissible continuous overload | 40 mA, analogue input type: current | 30 V, analogue input type: voltage |
| Input impedance | <= 250 Ohm current | >= 1 MOhm voltage |
| Immunity to microbreaks | 10 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 3.5 cm |
| Package 1 Length | 3 cm |
| Package 1 Weight | 74 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.24 kg |
