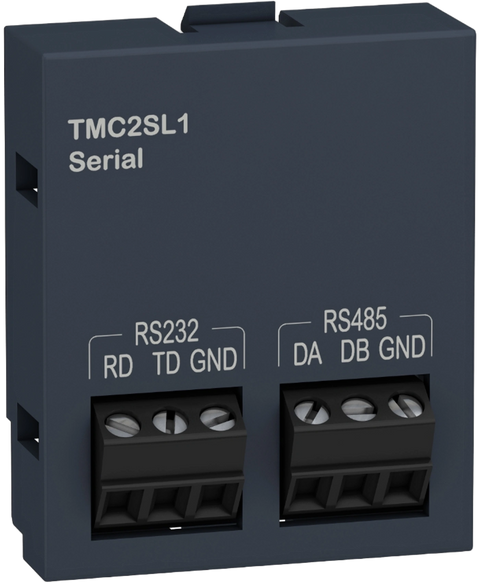

Schneider Electric TMC2SL1
Serial line cartridge, modicon m221, 1 x communicaion extension, temperature range: -10 c to 55 c
This Schneider Electric TMC2SL1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805658475.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M221 |
| Product or component type | Serial line cartridge |
| Product compatibility | Modicon M221C |
| Integrated connection type | Non isolated serial link - screw terminal block for RS232 | Non isolated serial link - screw terminal block for RS485 |
| Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 |
| Communication port protocol | Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Insulation | Non-insulated between lines and internal logic |
| Height | 41 mm |
| Depth | 15 mm |
| Width | 35 mm |
| Net weight | 0.015 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.569 cm |
| Package 1 Width | 4.742 cm |
| Package 1 Length | 6.985 cm |
| Package 1 Weight | 30.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 75 |
| Package 2 Height | 14.4 cm |
| Package 2 Width | 29.2 cm |
| Package 2 Length | 39.5 cm |
| Package 2 Weight | 3.32 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 2400 |
| Package 3 Height | 105 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 111 kg |
