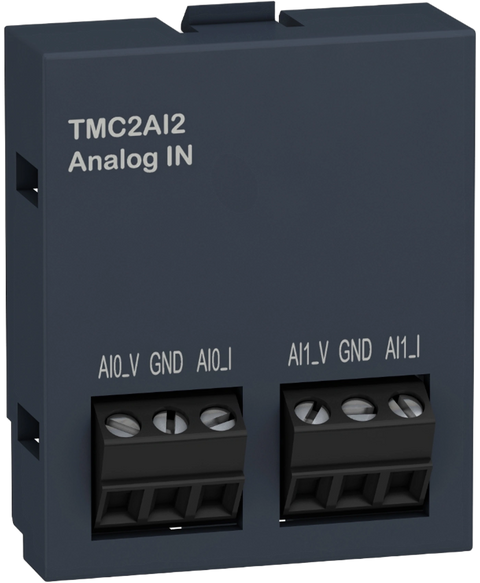

Schneider Electric TMC2AI2
Analog input cartridge, modicon m221, 2 analog inputs, I,O extension, 12 bits resolution, sd card and USB port, ethernet and serial line ports
This Schneider Electric TMC2AI2 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805578431.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M221 |
| Product or component type | Analogue input cartridge |
| Product compatibility | Modicon M221C |
| Analogue input number | 2 |
| Analogue input type | current 4...20 mA | current 0...20 mA | voltage 0...10 V |
| Analogue input resolution | 12 bits |
| LSB value | 2.44 mV 0...10 Vvoltage | 4.88 µA 0...20 mAcurrent | 3.91 µA 4...20 mAcurrent |
| Conversion time | 20 ms |
| Sampling duration | 10 ms |
| Absolute accuracy error | +/- 0.1 % of full scale at 25 °C | +/- 1 % of full scale |
| Temperature drift | +/- 0.02 %FS/°C |
| Repeat accuracy | +/- 0.5 %FS |
| Non-linearity | +/- 0.01 %FS |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable |
| Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs |
| Maximum cable distance between devices | Twisted shielded pairs cable: <30 m for input |
| Insulation | Non-insulated between analogue input and internal logic |
| Height | 41 mm |
| Depth | 15 mm |
| Width | 35 mm |
| Net weight | 0.015 kg |
| Permissible continuous overload | 13 V, analogue input type: voltage | 40 mA, analogue input type: current |
| Input impedance | <= 250 Ohm current | >= 1 MOhm voltage |
| Immunity to microbreaks | 10 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.594 cm |
| Package 1 Width | 4.692 cm |
| Package 1 Length | 7.059 cm |
| Package 1 Weight | 30.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 75 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.31 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 2400 |
| Package 3 Height | 75 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 111 kg |
