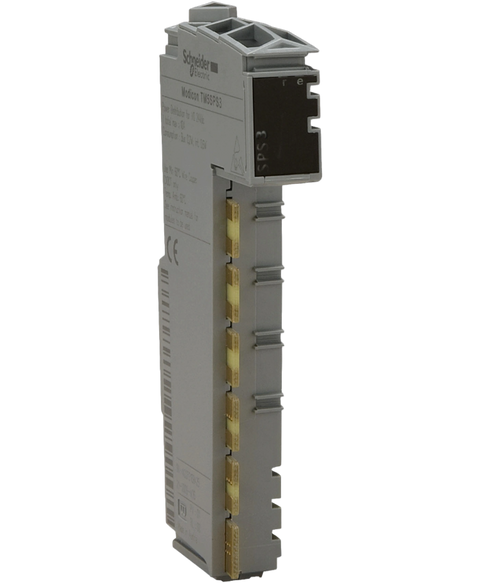

Schneider Electric TM5SPS3
Fieldbus interface module, modicon tm5, use with modicon lmc058, 24VDC, 10A external fuse, 1.91W, modicon m258 99 x 12.5 x 75mm
This Schneider Electric TM5SPS3 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805583778.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM5 |
| Product or component type | Power distribution module |
| Product compatibility | Logic controller | Motion controller |
| Range compatibility | Modicon LMC078 | Modicon LMC058 | Modicon M258 |
| [Us] rated supply voltage | 24 V for DC |
| Power supply output current | 750 mA for TM5 power bus | 500 mA for TM5 power bus | 10 A for I/O power segment |
| Input current | 750 mA for TM5 power bus | 500 mA for TM5 power bus | 10000 mA for I/O power segment |
| Maximum power dissipation in W | 1.91 W |
| Typical current consumption | 25 mA at 24 V DC |
| Short-circuit protection | 10 A external fuse |
| Housing colour | Grey |
| Electrical connection | Screw/spring terminal block |
| Height | 99 mm |
| Width | 12.5 mm |
| Depth | 75 mm |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | GOST-R | C-Tick | CSA | CULus |
| Standards | CSA C22.2 No 213 | CSA C22.2 No 142 | IEC 61131-2 | UL 508 |
| Ambient air temperature for operation | -10…55 °C without derating (horizontal installation) | 55…60 °C with derating factor (horizontal installation) | -10…50 °C (vertical installation) |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 1 gn (f = 8.4…150 Hz) on DIN rail | 3.5 mm (f = 5…8.4 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 51.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 97 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.199 kg |
