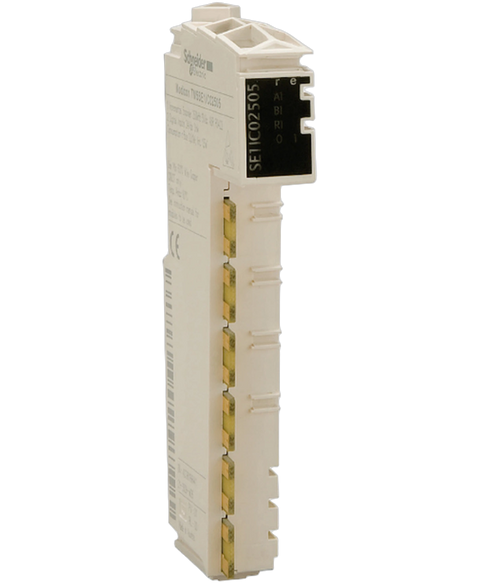

Schneider Electric TM5SE1SC10005
Counter module, Modicon TM5, 1 HSC incremental, 1 MHz
This Schneider Electric TM5SE1SC10005 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26909219458.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM5 |
| Product or component type | Counter module |
| Function of module | 2 x 24 V DC sink auxiliary inputs | 24 V DC encoder power supply |
| Discrete input number | 1 |
| Counting frequency | 1 MHz |
| Encoder type | 1 absolute encoder |
| Product compatibility | Logic controller | Motion controller |
| Range compatibility | Modicon LMC058 | Modicon M258 |
| Counter inputs resolution | 32 bits |
| Maximum cycle time | 2 ms |
| Input compatibility | 1 absolute encoder (5 V) |
| Isolation | 500 Vrms AC insulation between channel and bus |
| Discrete input logic | Sink |
| Discrete input voltage | 24 V DC |
| Discrete input current | 3.3 mA at 24 V |
| Input resistance | 7.19 kOhm |
| Current consumption | 2 mA at 5 V DC bus | 63 mA at 24 V DC input/output |
| Maximum power dissipation in W | 1.51 W |
| Marking | CE |
| DC supply voltage | 24 V |
| Height | 99 mm |
| Width | 12.5 mm |
| Depth | 75 mm |
| Standards | CSA C22.2 No 213 | IEC 61131-2 | UL 508 | CSA C22.2 No 142 |
| Product certifications | GOST-R | C-Tick | CSA | cULus |
| Ambient air temperature for operation | 0…55 °C without derating (horizontal installation) | 0…60 °C with derating factor (horizontal installation) | 0…50 °C (vertical installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20 conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 1 gn at 8.4…150 Hz on DIN rail | 3.5 mm at 5…8.4 Hz on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Resistance to electrostatic discharge | 4 kV on contact conforming to IEC 61000-4-2 | 8 kV in air conforming to IEC 61000-4-2 |
| Resistance to electromagnetic fields | 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3 | 10 V/m 80...2000 MHz conforming to IEC 61000-4-3 |
| Resistance to fast transients | 1 kV (I/O) conforming to IEC 61000-4-4 | 1 kV (shielded cable) conforming to IEC 61000-4-4 | 2 kV (power lines) conforming to IEC 61000-4-4 |
| Surge withstand | 0.5 kV differential mode conforming to IEC 61000-4-5 | 1 kV common mode conforming to IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 |
| Disturbance radiated/conducted | CISPR 11 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 39.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 97 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.130 kg |
