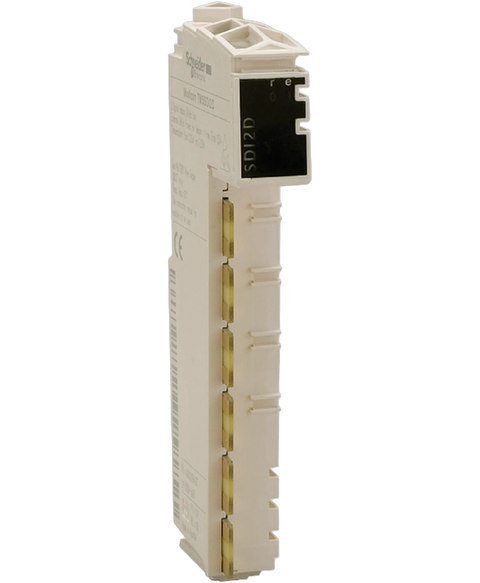

Schneider Electric TM5SDO12T
Discrete output mod, 12 digital outputs, 0.5A, 24VDC, IP20, modicon tm5 series, rohs compliant
This Schneider Electric TM5SDO12T is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801446104.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM5 |
| Product or component type | Discrete output module |
| Product compatibility | PacDrive LMC Eco | PacDrive LMC Pro 2 | PacDrive LMC Pro | Motion controller | Logic controller |
| Range compatibility | PacDrive LMC motion controller | Modicon LMC058 | Modicon M258 |
| Discrete output number | 12 |
| Discrete output logic | Source |
| Discrete output voltage | 24 V DC (20.4...28.8 V) for transistor |
| Current per channel | 0.5 A |
| Maximum current per output common | 6 A |
| Peak output current | 12 A |
| Switching frequency | <= 500 Hz resistive load |
| Response time | <= 300 µs from state 0 to state 1 for output | <= 300 µs from state 1 to state 0 for output |
| Maximum leakage current | 5 µA 24 V DC |
| Maximum voltage drop | <0.3 V at 500 mA for output | <2 V at 500 mA for sensor supply |
| Typical current consumption | 52 mA at 5 V DC | 48 mA at 24 V DC |
| Electrical connection | 1 wire |
| Power dissipation in W | 2.04 W |
| Local signalling | 1 LED (green) for power supply | 1 LED (red) for power supply | 12 LEDs (yellow) for output status |
| Height | 99 mm |
| Width | 12.5 mm |
| Depth | 75 mm |
| Net weight | 0.025 kg |
| Electromagnetic compatibility | Electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2 | Electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2 | Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3 | Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test, 1 kV I/O conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test, 2 kV power lines conforming to IEC 61000-4-4 | 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to IEC 61000-4-5 | 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to IEC 61000-4-5 | Conducted RF disturbances conforming to IEC 61000-4-6 | Conducted and radiated emissions conforming to CISPR 11 |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | GOST-R | CSA | CULus | C-Tick |
| Standards | CSA C22.2 No 213 | UL 508 | CSA C22.2 No 142 | IEC 61131-2 |
| Ambient air temperature for operation | -10…55 °C without derating (horizontal installation) | -10…60 °C with derating factor (horizontal installation) | -10…50 °C (vertical installation) |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 1 gn (f = 8.4…150 Hz) on DIN rail | 3.5 mm (f = 5…8.4 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 5.400 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 39.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 97 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.172 kg |
