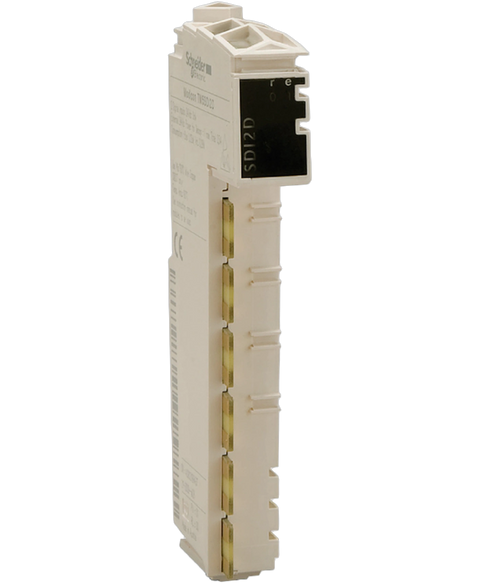

Schneider Electric TM5SDI12D
Discrete input module, 12ch, 24VDC; NO. of digital inputs:12; supply voltage:24VDC; ip , nema rating:IP20; product range:modicon tm5 series rohs compliant: yes
This Schneider Electric TM5SDI12D is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805547604.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM5 |
| Product or component type | Discrete input module |
| Product compatibility | Motion controller | PacDrive LMC Pro | PacDrive LMC Pro 2 | Logic controller | PacDrive LMC Eco |
| Range compatibility | PacDrive LMC motion controller | Modicon M258 | Modicon LMC058 |
| Discrete input number | 12 |
| Discrete input voltage | 24 V DC (voltage limits: 20.4...28.8 V) |
| Discrete input logic | Sink |
| Discrete input current | 3.75 mA at 24 V DC |
| Voltage state 1 guaranteed | >= 15 V |
| Voltage state 0 guaranteed | <= 5 V |
| Input impedance | 6.4 kOhm |
| Input filtering | <= 25 ms configurable by software | <= 100 ms hardware |
| Typical current consumption | 36 mA at 5 V DC | 73 mA at 24 V DC |
| Electrical connection | 1 wire |
| Power dissipation in W | 1.93 W |
| Local signalling | 1 LED (green) for power supply | 1 LED (red) for power supply | 12 LEDs (green) for input status |
| Height | 99 mm |
| Width | 12.5 mm |
| Depth | 75 mm |
| Net weight | 0.025 kg |
| Electromagnetic compatibility | Electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2 | Electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2 | Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3 | Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3 | Electrical fast transient/burst immunity test, 1 kV I/O conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4 | Electrical fast transient/burst immunity test, 2 kV power lines conforming to IEC 61000-4-4 | 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to IEC 61000-4-5 | 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to IEC 61000-4-5 | Conducted RF disturbances conforming to IEC 61000-4-6 | Conducted and radiated emissions conforming to CISPR 11 |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CULus | C-Tick | GOST-R | CSA |
| Standards | CSA C22.2 No 213 | IEC 61131-2 | UL 508 | CSA C22.2 No 142 |
| Ambient air temperature for operation | -10…55 °C without derating (horizontal installation) | -10…60 °C with derating factor (horizontal installation) | -10…50 °C (vertical installation) |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 1 gn (f = 8.4…150 Hz) on DIN rail | 3.5 mm (f = 5…8.4 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 36.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 97 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.866 kg |
