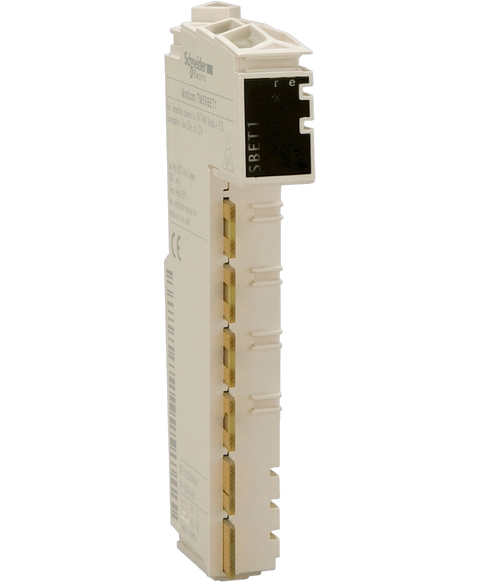

Schneider Electric TM5SBET1
Remote transmitter module, communication between remote I,O, 25mA at 24 V DC input,output, 100mA at 5 V DC bus, 1.1 watt
This Schneider Electric TM5SBET1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805538774.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM5 |
| Product or component type | Remote transmitter module |
| Product compatibility | Logic controller | Motion controller |
| Range compatibility | Modicon M258 | Modicon LMC058 |
| Bus length | 2500 m |
| Current consumption | 25 mA at 24 V DC for input/output | 100 mA at 5 V DC for bus |
| Power dissipation in W | 1.1 W |
| Local signalling | 1 LED green for power supply | 1 LED red for power supply | 1 LED yellow for communication data bus |
| Housing colour | White |
| Height | 99 mm |
| Width | 12.5 mm |
| Depth | 75 mm |
| Net weight | 0.025 kg |
| IP degree of protection | IP20 | IP67 |
| Marking | CE |
| Product certifications | CULus | GOST-R | CSA | C-Tick |
| Standards | UL 508 | IEC 61131-2 | CSA C22.2 No 213 | CSA C22.2 No 142 |
| Ambient air temperature for operation | 0…50 °C (vertical installation) | 0…55 °C without derating (horizontal installation) | 0…60 °C with derating factor (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 1 gn (f = 8.4…150 Hz) on DIN rail | 3.5 mm (f = 5…8.4 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 36.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 97 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.000 kg |
