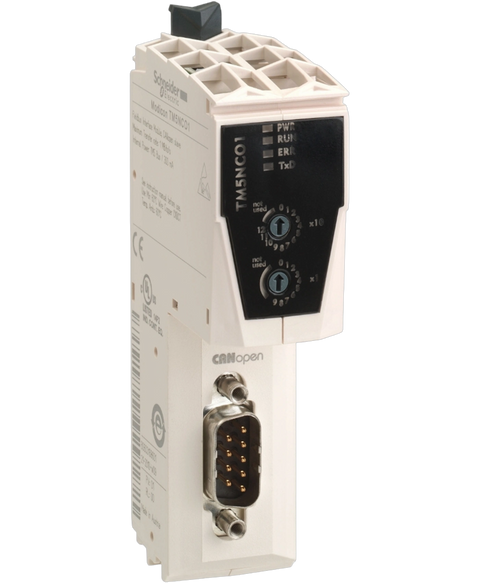

Schneider Electric TM5NCO1
Communication module, canopen, motion,logic controller, white, 300mA, 1.5W, modicon tm5 series
This Schneider Electric TM5NCO1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26928288851.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM5 |
| Product or component type | CANopen communication module |
| Product compatibility | Motion controller | Logic controller |
| Range compatibility | Modicon LMC058 | Modicon LMC078 | Modicon M258 |
| Integrated connection type | 1 isolated serial link, male SUB-D 9 CANopen, 10, 20, 50, 125, 250, 500, 800, 1000 Kbit/s and autodetected |
| Current consumption | 300 mA |
| Device composition | Interface module | Bus base | Power supply | Terminal block |
| Power dissipation in W | 1.5 W |
| Local signalling | 1 LED green/red for power supply (PWR) | 1 LED green/red for CAN status (RUN) | 1 LED red for CAN status (ERROR) | 1 LED yellow for controller communication status on TM5 bus (TxD) |
| Height | 99 mm |
| Width | 37.5 mm |
| Depth | 75 mm |
| Net weight | 0.05 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CULus | C-Tick | CSA | GOST-R |
| Standards | CSA C22.2 No 213 | IEC 61131-2 | UL 508 | CSA C22.2 No 142 |
| Ambient air temperature for operation | -10…55 °C without derating (horizontal installation) | -10…60 °C with derating factor (horizontal installation) | -10…50 °C (vertical installation) |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 1 gn (f = 8.4…150 Hz) on DIN rail | 3.5 mm (f = 5…8.4 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.200 cm |
| Package 1 Width | 6.000 cm |
| Package 1 Length | 10.500 cm |
| Package 1 Weight | 64.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.539 kg |
