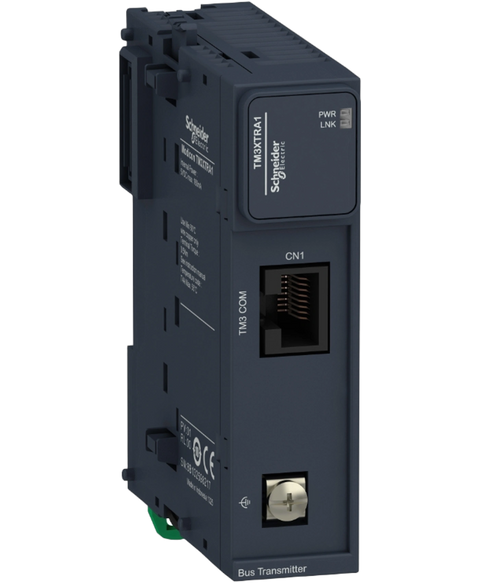

Schneider Electric TM3XTRA1
Remote transmittter, t3m, 0.6 watts, RJ45 connector
This Schneider Electric TM3XTRA1 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Accessories range and is referenced internally as PartLogic SKU PL26805543389.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM3 |
| Product or component type | Remote transmitter module |
| Range compatibility | Modicon M241 | Modicon M251 | Modicon M221 | Modicon M262 |
| Current consumption | 100 mA at 5 V DC via bus connector at state on | 30 mA at 5 V DC via bus connector at state off |
| Maximum power dissipation in W | 0.6 W |
| Cable distance between devices | 0.5…5 mm extension cable with 2 RJ45 conductor between receiver and transmitter |
| Electrical connection | RJ45 connector for connecting the bus receiver | Screw connector terminal for connecting the functional ground |
| Local signalling | 1 LED green for power supply | 1 LED green for Link (Link Status) |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 | Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height | 90 mm |
| Width | 23.65 mm |
| Depth | 73.3 mm |
| Net weight | 0.065 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | Merchant Navy | C-Tick | GOST | CSA HazLoc | CE | UKCA | RCM | EAC | CULus |
| Standards | CSA C22.2 No 213 Class I Division 2 Group A | CSA C22.2 No 213 Class I Division 2 Group B | CSA C22.2 No 213 Class I Division 2 Group C | CSA C22.2 No 213 Class I Division 2 Group D | UL 1604 Class 1 Division 2 | CSA C22.2 No 142 | IEC 61131-2 | UL 508 |
| Ambient air temperature for operation | -10…55 °C (horizontal installation) | -10…50 °C (vertical installation) |
| Ambient air temperature for storage | -40…70 °C |
| Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail | 3.5 mm (f = 5…8.4 Hz) on panel mounting | 3 gn (f = 8.4…150 Hz) on panel mounting |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 10.700 cm |
| Package 1 Length | 12.700 cm |
| Package 1 Weight | 166.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.721 kg |
