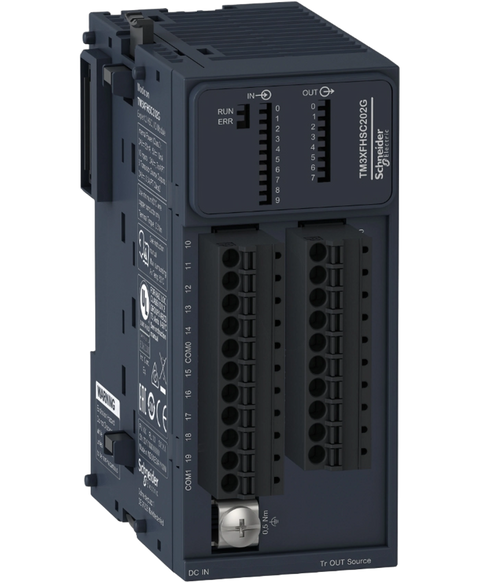

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric TM3XHSC202G
Module high speed counting, modicon tm3, 2 channels hsc, 10 inputs, 8 outputs (spring)
This Schneider Electric TM3XHSC202G is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26928280697.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$1,061.74
(inc. GST)
In Stock
| Range of product | Modicon TM3 |
| Product or component type | Module hight speed counting |
| [Us] rated supply voltage | 24 V DC by external supply (- 15...20 %) |
| Number of input channels | 10 |
| Number of output channels | 8 |
| Discrete I/O number | 18 |
| Range compatibility | Modicon M262 |
| Current consumption | 100 mA at 5 V DC | 50 mA at 24 V DC |
| Counting frequency | 200 kHz |
| Discrete input voltage | 24 V DC |
| Electrical circuit type | Standard input | Latch input |
| Discrete input logic | Sink or source |
| Output voltage | 24 V DC for transistor output |
| Output voltage limits | 30 V DC |
| Discrete output current | 300 mA for fast output (Q0...Q7) |
| Discrete output logic | Source |
| Output protection type | Against overload and short-circuits |
| Reset | Automatic reset |
| Local signalling | 1 LED for I/O | 1 LED for RUN | 1 LED for ERR |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Services | HSC simple - functions available: One shot/Modulo | HSC main single phase - functions available: One shot/Modulo/Event counting | HSC main dual phase - functions available: Modulo/Free-large | Period meter - functions available: Edge to Edge, Edge to Opposite |
| Counting mode | 2 main expert function (main counting function, frequency meter, period meter) | Max 8 simple counting function |
| Event management | No event | Thresholds < 10 µs |
| Height | 90 mm |
| Depth | 85 mm |
| Width | 39 mm |
| Net weight | 150 g |
| DC supply voltage | 24 V |
| Product certifications | CE | cULus | IACS E10 | RCM | UKCA | EAC |
| Standards | CSA C22.2 No 142 | ANSI/ISA 12-12-01 | UL 1604 | CSA C22.2 No 213 | EN/IEC 61131-2:2007 | UL 508 | EN/IEC 61010-2-201 |
| Resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 | 4 kV on contact conforming to EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 | 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 | 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| Resistance to fast transients | 2 kV for alimentation cable conforming to EN/IEC 61000-4-4 | 1 kV for Ethernet line conforming to EN/IEC 61000-4-4 | 1 kV for serial link conforming to EN/IEC 61000-4-4 | 1 kV for input conforming to EN/IEC 61000-4-4 | 1 kV for transistor output conforming to EN/IEC 61000-4-4 |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-4 |
| Electromagnetic emission | Conducted emissions - test level: 120...69 dBµV/m QP at 10…150 kHz conforming to EN/IEC 55011 | Conducted emissions - test level: 63 dBμV/m QP at 1.5…30 MHz conforming to EN/IEC 55011 | Radiated emissions - test level: 40 dBµV/m class A at 30…230 MHz conforming to EN/IEC 55011 | Conducted emissions - test level: 79...63 dBμV/m QP at 150…1500 kHz conforming to EN/IEC 55011 | Radiated emissions - test level: 47 dBµV/m class A at 230…1000 MHz conforming to EN/IEC 55011 |
| Ambient air temperature for operation | -20…60 °C horizontal installation | -20…50 °C vertical installation |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 10…95 %, without condensation (in operation) | 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 2…8.4 Hz on DIN rail | 1 gn at 8.4…200 Hz on DIN rail | 3.5 mm at 2…8.4 Hz on panel | 1 gn at 8.4…200 Hz on panel |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.2 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 12.7 cm |
| Package 1 Weight | 214.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.5 kg |
