Schneider Electric TM3TM3

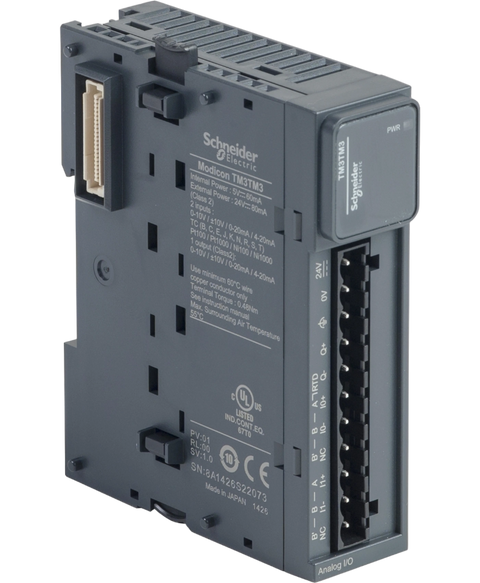

Product image for illustrative purposes only. Actual item may vary.
Schneider Electric logo

Schneider Electric TM3TM3

SKU: PL26805524126
MPN: TM3TM3

Analogue I,O module, tm3, 2 i,p & 1 o,p; current rating:-; product range:schneider modicon series; NO. of analog inputs:2; NO. of analog outputs:1 rohs compliant: yes

This Schneider Electric TM3TM3 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805524126.

Brand New - 12 Months Warranty
$378.47 (inc. GST)
In Stock

Datasheet

Range of product Modicon TM3
Product or component type Input/output analog module
Range compatibility Modicon M221 | Modicon M241 | Modicon M251 | Modicon M262
Analogue input number 2
Analogue output number 1
Analogue input type Current 4...20 mA | Current 0...20 mA | Voltage 0...10 V | Voltage - 10...10 V | Thermocouple - 200...1000 °C thermocouple J | Thermocouple - 200...1300 °C thermocouple K | Thermocouple 0...1760 °C thermocouple R | Thermocouple 0...1760 °C thermocouple S | Thermocouple 0...1820 °C thermocouple B | Thermocouple - 200...400 °C thermocouple T | Thermocouple - 200...1300 °C thermocouple N | Thermocouple - 200...800 °C thermocouple E | Thermocouple 0...2315 °C thermocouple C | Temperature probe - 60...180 °C Ni 100/Ni 1000 | Temperature probe - 200...850 °C Pt 100 | Temperature probe - 200...600 °C Pt 1000
Analogue input resolution 16 bits | 15 bits + sign
Permissible continuous overload 13 V, analogue input type: voltage | 40 mA, analogue input type: current
Stabilisation time 1 ms
Input impedance <= 50 Ohm | >= 1 MOhm
Sampling duration 10 ms
Analogue output type Current: 4...20 mA | Current: 0...20 mA | Voltage: 0...10 V | Voltage: - 10...10 V
Conversion time 100 ms + 100 ms per channel + 1 controller cycle time for analogue input thermocouple
Absolute accuracy error +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C | +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C | +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C | +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C | +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C | +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C | +/- 0.1 % of full scale at 25 °C for analogue input voltage/current | +/- 0.1 % of full scale at 25 °C for thermocouple C 0...2315 °C | +/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe | +/- 0.1 % of full scale at 25 °C for thermocouple R, S 200...1760 °C | +/- 0.1 % of full scale at 25 °C for thermocouple B 300...1820 °C | +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C | +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C | +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C | +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C | +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C | +/- 0.1 % of full scale at 25 °C for analogue output voltage/current
Repeat accuracy +/-0.5 %FS for input
Output ripple 20 mV
Cross talk <= 1 LSB
Type of cable Twisted shielded pairs cable <30 m for input/output circuit
Electrical connection 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs, outputs and supply
LSB value 0.15 mV, 0...10 V | 0.30 mV, - 10...10 V | 0.30 µA, 0...20 mA | 0.244 µA, 4...20 mA | 0.1 °C | 2.44 mV, 0...10 V | 4.88 mV, - 10...10 V | 4.88 µA, 0...20 mA | 3.91 µA, 4...20 mA
Insulation Between input and supply at 1500 V AC | Between input and internal logic at 500 V AC | Between output and supply at 1500 V AC | Between output and internal logic at 500 V AC
Immunity to microbreaks 10 ms
Load impedance ohmic 1 kOhm voltage | 300 Ohm current
load type Resistive
Temperature drift +/- 0.006 %FS/°C
Non-linearity +/- 0.01 %FS, analogue output type: analog output | +/- 0.1 %FS, analogue input type: analog input
Typical current consumption 55 mA at 24 V DC no load | 55 mA at 5 V DC no load | 60 mA at 5 V DC full load | 80 mA at 24 V DC full load
Local signalling 1 LED green for PWR
Mounting support Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit
Height 90 mm
Width 23.6 mm
Depth 70 mm
Net weight 0.115 kg
IP degree of protection IP20
Marking CE
Product certifications CE | UKCA | RCM | EAC | CULus | CULus HazLoc
Standards IEC 61131-2
Electromagnetic emission Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 | Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011
Ambient air temperature for operation -10…55 °C (horizontal installation) | -10…35 °C (vertical installation)
Ambient air temperature for storage -25…70 °C
Relative humidity 10…95 % without condensation
Operating altitude 0...2000 m
Pollution degree 2
Vibration resistance 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail
Shock resistance 15 gn for 11 ms
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 7.611 cm
Package 1 Width 10.688 cm
Package 1 Length 12.753 cm
Package 1 Weight 220.0 g
Unit Type of Package 2 S04
Number of Units in Package 2 42
Package 2 Height 30 cm
Package 2 Width 40 cm
Package 2 Length 60 cm
Package 2 Weight 10.421 kg
Unit Type of Package 3 P12
Number of Units in Package 3 504
Package 3 Height 105 cm
Package 3 Width 120 cm
Package 3 Length 80 cm
Package 3 Weight 130 kg
