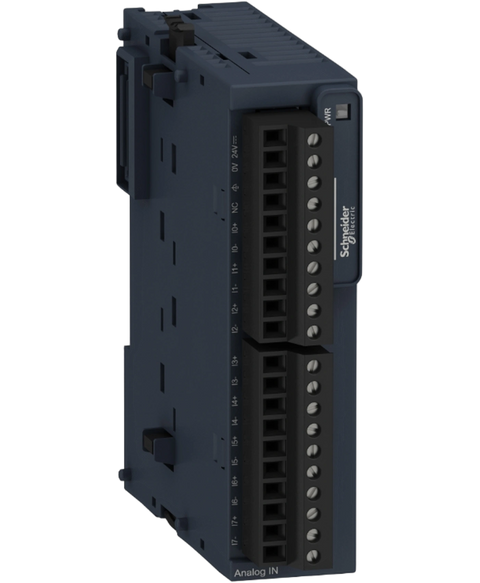

Schneider Electric TM3TI8T
Analog input module, 8 analogue inputs, 24VDC, 30mA, 100 ms conversion time, compatible with m221,m241,m251,m262 ranges, -25 to +70 degrees c, IP20
This Schneider Electric TM3TI8T is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801423883.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$510.31
(inc. GST)
In Stock
| Range of product | Modicon TM3 |
| Product or component type | Analog input module |
| Range compatibility | Modicon M221 | Modicon M241 | Modicon M251 | Modicon M262 |
| Analogue input number | 8 |
| Analogue input type | Thermocouple - 200...1000 °C thermocouple J | Thermocouple - 200...1300 °C thermocouple K | Thermocouple 0...1760 °C thermocouple R | Thermocouple 0...1760 °C thermocouple S | Thermocouple 0...1820 °C thermocouple B | Thermocouple - 200...400 °C thermocouple T | Thermocouple - 200...1300 °C thermocouple N | Thermocouple - 200...800 °C thermocouple E | Thermocouple 0...2315 °C thermocouple C | Thermistor -90...150 °C NTC 10k | Thermistor 100...10000 Ohm PTC | Thermocouple - 200...1000 °C |
| Analogue input resolution | 16 bits | 15 bits + sign |
| Input impedance | >= 1 MOhm |
| Sampling duration | 100 ms |
| Conversion time | 100 ms + 100 ms per channel + 1 controller cycle time |
| Absolute accuracy error | +/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C | +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C | +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C | +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C | +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C | +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C | +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C | +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C | +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C | +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C | +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C | +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C | +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C | +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C |
| Repeat accuracy | +/-0.5 %FS |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable <30 m for input circuit |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| LSB value | 0.1 °C | 1 Ohm |
| Insulation | Between output and supply at 1500 V AC | Between output and internal logic at 500 V AC |
| Immunity to microbreaks | 10 ms |
| Temperature drift | +/- 0.01 %FS/°C |
| Non-linearity | +/- 0.2 %FS |
| Typical current consumption | 30 mA at 24 V DC | 45 mA at 5 V DC | 40 mA at 5 V DC |
| Local signalling | 1 LED green for PWR |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height | 90 mm |
| Width | 23.6 mm |
| Depth | 70 mm |
| Net weight | 0.11 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CE | UKCA | RCM | EAC | CULus | CULus HazLoc |
| Standards | IEC 61131-2 |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 | Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Ambient air temperature for operation | -10…55 °C (horizontal installation) | -10…35 °C (vertical installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.516 cm |
| Package 1 Width | 10.685 cm |
| Package 1 Length | 12.739 cm |
| Package 1 Weight | 210.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.391 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 432 |
| Package 3 Height | 105 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 122 kg |
