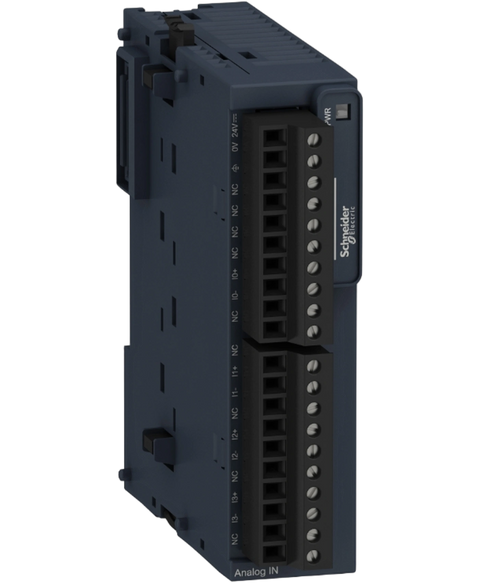

Schneider Electric TM3TI4
Analogue input module, tm3, 4 i,p, 24v; current rating:-; product range:schneider modicon series; NO. of analog inputs:4 rohs compliant: yes
This Schneider Electric TM3TI4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801431558.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
Brand New - 12 Months Warranty
$362.88
(inc. GST)
In Stock
| Range of product | Modicon TM3 |
| Product or component type | Analog input module |
| Range compatibility | Modicon M221 | Modicon M241 | Modicon M251 | Modicon M262 |
| Analogue input number | 4 |
| Analogue input type | Current 4...20 mA | Current 0...20 mA | Voltage 0...10 V | Voltage - 10...10 V | Thermocouple - 200...1000 °C thermocouple J | Thermocouple - 200...1300 °C thermocouple K | Thermocouple 0...1760 °C thermocouple R | Thermocouple 0...1760 °C thermocouple S | Thermocouple 0...1820 °C thermocouple B | Thermocouple - 200...400 °C thermocouple T | Thermocouple - 200...1300 °C thermocouple N | Thermocouple - 200...800 °C thermocouple E | Thermocouple 0...2315 °C thermocouple C | Temperature probe - 60...180 °C Ni 100/Ni 1000 | Temperature probe - 200...850 °C Pt 100 | Temperature probe - 200...600 °C Pt 1000 |
| Analogue input resolution | 16 bits | 15 bits + sign |
| Permissible continuous overload | 13 V, analogue input type: voltage | 40 mA, analogue input type: current |
| Input impedance | <= 50 Ohm | >= 1 MOhm |
| Sampling duration | 10 ms |
| Conversion time | 100 ms + 100 ms per channel + 1 controller cycle time for analogue input thermocouple |
| Absolute accuracy error | +/- 0.2 % of full scale at 25 °C for analogue input voltage/current | +/- 0.2 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe | +/- 0.2 % of full scale at 25 °C for thermocouple C 0...2315 °C | +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C | +/- 0.2 % of full scale at 25 °C for thermocouple R, S 200...1760 °C | +/- 0.2 % of full scale at 25 °C for thermocouple B 300...1820 °C | +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C | +/- 0.2 % of full scale at 25 °C for thermocouple K 0...1300 °C | +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C | +/- 0.2 % of full scale at 25 °C for thermocouple J 0...1000 °C | +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C | +/- 0.2 % of full scale at 25 °C for thermocouple E 0...800 °C | +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C | +/- 0.2 % of full scale at 25 °C for thermocouple T 0...400 °C | +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C | +/- 0.2 % of full scale at 25 °C for thermocouple N 0...1300 °C |
| Repeat accuracy | +/-0.5 %FS |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable <30 m for input circuit |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| LSB value | 2.44 mV, 0...10 V | 4.88 mV, - 10...10 V | 4.88 µA, 0...20 mA | 3.91 µA, 4...20 mA | 0.1 °C |
| Insulation | Between output and supply at 1500 V AC | Between output and internal logic at 500 V AC |
| Immunity to microbreaks | 10 ms |
| Temperature drift | +/- 0.01 %FS/°C |
| Non-linearity | +/- 0.2 %FS |
| Typical current consumption | 45 mA at 5 V DC | 50 mA at 5 V DC | 35 mA at 24 V DC | 40 mA at 24 V DC |
| Local signalling | 1 LED green for PWR |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height | 90 mm |
| Width | 23.6 mm |
| Depth | 70 mm |
| Net weight | 0.11 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CE | UKCA | RCM | EAC | CULus | CULus HazLoc |
| Standards | IEC 61131-2 |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 | Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Ambient air temperature for operation | -10…55 °C (horizontal installation) | -10…35 °C (vertical installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 12.500 cm |
| Package 1 Weight | 196.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.168 kg |
