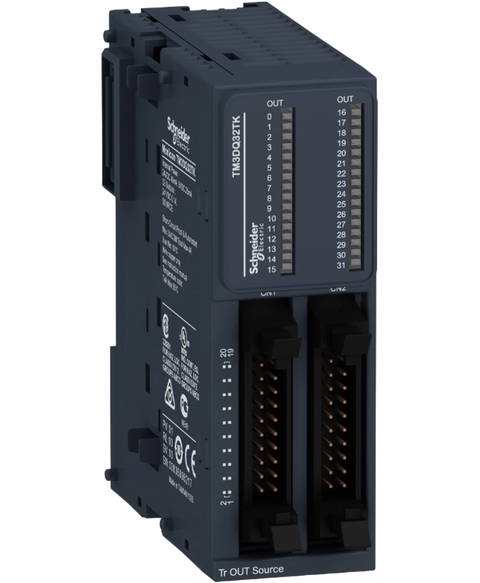

Schneider Electric TM3DQ32TK
I,O module, expansion, modicon tm3, 32 output, transistor, pnp, 24VDC output, 100mA output, DIN rail mount
This Schneider Electric TM3DQ32TK is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801425402.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM3 |
| Product or component type | Discrete output module |
| Range compatibility | Modicon M241 | Modicon M251 | Modicon M221 | Modicon M262 |
| Device application | Industrial application |
| Discrete output number | 32 |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC for transistor |
| Discrete output current | 100 mA transistor output |
| Response time on output | 450 µs maximum (turn on) | 450 µs maximum (turn off) |
| Maximum leakage current | 0.1 mA |
| Maximum voltage drop | <0.4 V |
| Maximum tungsten load | <1.2 W |
| Power supply type | Electronic powered by internal bus |
| Typical current consumption | 5 mA at 5 V DC | 0 mA at 24 V DC | 20 mA at 5 V DC | 10 mA at 24 V DC |
| Electrical connection | HE-10 connector for outputs |
| Maximum cable distance between devices | Unshielded cable: <5 m for transistor output |
| Isolation between channels and bus | 500 V AC |
| Local signalling | 1 LED per channel (green) for output status |
| Housing colour | Grey |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height | 90 mm |
| Width | 33.5 mm |
| Depth | 81.3 mm |
| Net weight | 0.112 kg |
| IP degree of protection | IP20 |
| Protective treatment | None |
| Marking | CE |
| Product certifications | CE | CULus | UKCA | RCM | EAC | CULus HazLoc |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | -10…35 °C (vertical installation) | -10…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 10…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail | 3.5 mm (f = 5…8.4 Hz) on panel mounting | 3 gn (f = 8.4…150 Hz) on panel mounting |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.525 cm |
| Package 1 Width | 10.661 cm |
| Package 1 Length | 12.89 cm |
| Package 1 Weight | 220.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 29.6 cm |
| Package 2 Width | 39.6 cm |
| Package 2 Length | 56.4 cm |
| Package 2 Weight | 10.32 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 504 |
| Package 3 Height | 75 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 138.4 kg |
