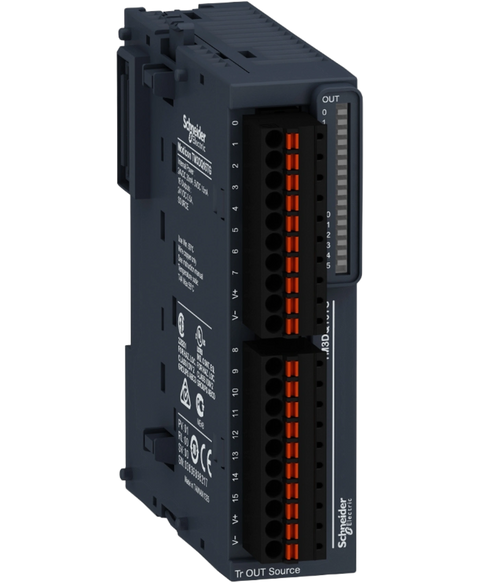

Schneider Electric TM3DQ16TG
Discrete output module, Modicon TM3, 16 outputs transistor PNP (spring)
This Schneider Electric TM3DQ16TG is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805660012.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM3 |
| Product or component type | Discrete output module |
| Range compatibility | Modicon M241 | Modicon M251 | Modicon M221 | Modicon M262 |
| Device application | Industrial application |
| Discrete output number | 16 |
| Discrete output logic | Positive logic (source) |
| Discrete output voltage | 24 V DC for transistor |
| Discrete output current | 500 mA transistor output |
| Response time on output | 450 µs maximum (turn on) | 450 µs maximum (turn off) |
| Maximum leakage current | 0.1 mA |
| Maximum voltage drop | <0.4 V |
| Maximum tungsten load | <3 W for transistor |
| Safety reliability data | MTBF = 57 years 40 °C |
| Power supply type | Electronic powered by internal bus |
| Typical current consumption | 5 mA at 5 V DC | 0 mA at 24 V DC | 20 mA at 5 V DC | 10 mA at 24 V DC |
| Electrical connection | 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for outputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for transistor output |
| Isolation between channels and bus | 500 V AC |
| Local signalling | 1 LED per channel (green) for output status |
| Housing colour | Grey |
| AWG gauge | 0.14…1.5 mm² / AWG 26...AWG 16 with solid cable |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height | 90 mm |
| Width | 27.4 mm |
| Depth | 84.6 mm |
| Net weight | 0.11 kg |
| IP degree of protection | IP20 |
| Protective treatment | None |
| Marking | CE |
| Product certifications | CE | CULus | UKCA | RCM | EAC | CULus HazLoc |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | -10…35 °C (vertical installation) | -10…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 10…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail | 3.5 mm (f = 5…8.4 Hz) on panel mounting | 3 gn (f = 8.4…150 Hz) on panel mounting |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 12.5 cm |
| Package 1 Length | 10.5 cm |
| Package 1 Weight | 245.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 11.273 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 504 |
| Package 3 Height | 105 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 124 kg |
