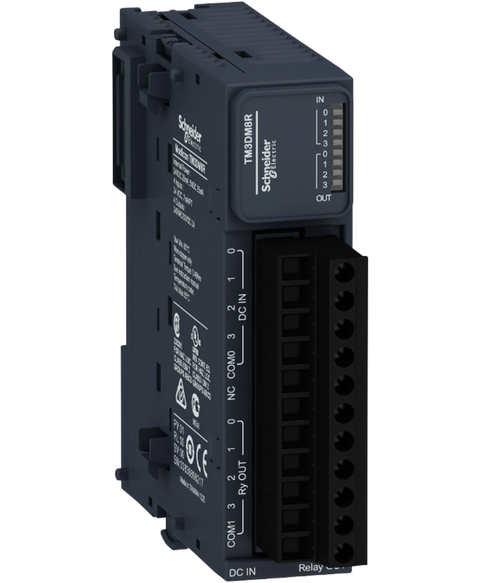

Schneider Electric TM3DM8R
DISCRETE I,O MODULE, TM3, 8 I,O, 4 INPUTS, 4 RELAY OUTPUTS, 24 VDC, SCREW
This Schneider Electric TM3DM8R is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805650871.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM3 |
| Product or component type | Discrete I/O module |
| Range compatibility | Modicon M241 | Modicon M251 | Modicon M221 | Modicon M262 |
| Device application | Industrial application |
| Discrete input number | 4 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete output number | 4 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 24 V AC for relay outputs | 240 V DC for relay outputs |
| Discrete input current | 7 mA |
| Voltage state 1 guaranteed | Input: 15...28.8 V DC |
| Voltage state 0 guaranteed | 0...5 V input |
| Current state 1 guaranteed | >= 2.5 mA input |
| Current state 0 guaranteed | <= 1 mA input |
| Input impedance | 3.4 kOhm |
| Response time on input | 4 ms (maximum (turn on)) | 4 ms (maximum (turn off)) |
| Discrete output current | 2000 mA relay output |
| Minimum switching current | 10 mA 5 V DC |
| Response time on output | <= 10 ms maximum (turn on) | <= 5 ms maximum (turn off) |
| Mechanical durability | 20000000 cycles |
| Safety reliability data | MTBF = 310 years 40 °C |
| Power supply type | Electronic powered by internal bus |
| Typical current consumption | 5 mA at 5 V DC | 0 mA at 24 V DC | 65 mA at 5 V DC |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs and outputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| Local signalling | 1 LED per channel (green) for I/O state |
| Housing colour | Grey |
| AWG gauge | 0.2…2.5 mm² / AWG 24...AWG 14 with solid cable |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height | 90 mm |
| Width | 27.4 mm |
| Depth | 84.6 mm |
| Net weight | 0.95 kg |
| IP degree of protection | IP20 |
| Protective treatment | None |
| Marking | CE |
| Product certifications | CE | CULus | UKCA | RCM | EAC | CULus HazLoc |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | -10…35 °C (vertical installation) | -10…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 10…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail | 3.5 mm (f = 5…8.4 Hz) on panel mounting | 3 gn (f = 8.4…150 Hz) on panel mounting |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 12.5 cm |
| Package 1 Length | 10.5 cm |
| Package 1 Weight | 230.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 10.643 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 504 |
| Package 3 Height | 105 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 138 kg |
