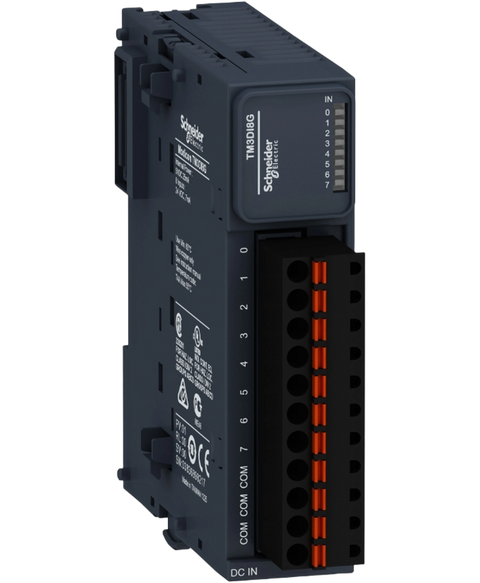

Schneider Electric TM3DI8G
Discrete input module, 8i, 24VDC, IP20; NO. of digital inputs:8; supply voltage:24VDC; ip , nema rating:IP20; product range:modicon tm3 series rohs compliant: yes
This Schneider Electric TM3DI8G is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805526955.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM3 |
| Product or component type | Discrete input module |
| Range compatibility | Modicon M241 | Modicon M251 | Modicon M221 | Modicon M262 |
| Device application | Industrial application |
| Discrete input number | 8 |
| Discrete input voltage | 24 V DC |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input current | 7 mA |
| Voltage state 1 guaranteed | Input: 15...28.8 V DC |
| Voltage state 0 guaranteed | 0...5 V input |
| Current state 1 guaranteed | >= 2.5 mA input |
| Current state 0 guaranteed | <= 1 mA input |
| Input impedance | 3.4 kOhm |
| Response time on input | 4 ms (maximum (turn on)) | 4 ms (maximum (turn off)) |
| Safety reliability data | MTBF = 410 years 40 °C |
| Sensor power supply | 19.2…28.8 V |
| Power supply type | Electronic powered by internal bus |
| Typical current consumption | 22 mA at 5 V DC | 5 mA |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| Isolation between channels and bus | 500 V AC |
| Local signalling | 1 LED per channel (green) for input status |
| Housing colour | Grey |
| AWG gauge | 0.2…2.5 mm² / AWG 24...AWG 14 with solid cable |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height | 90 mm |
| Width | 27.4 mm |
| Depth | 84.6 mm |
| Net weight | 0.085 kg |
| IP degree of protection | IP20 |
| Protective treatment | None |
| Marking | CE |
| Product certifications | CE | CULus | UKCA | RCM | EAC | CULus HazLoc |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | -10…35 °C (vertical installation) | -10…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 10…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail | 3.5 mm (f = 5…8.4 Hz) on panel mounting | 3 gn (f = 8.4…150 Hz) on panel mounting |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.000 cm |
| Package 1 Width | 10.800 cm |
| Package 1 Length | 13.000 cm |
| Package 1 Weight | 195.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.175 kg |
