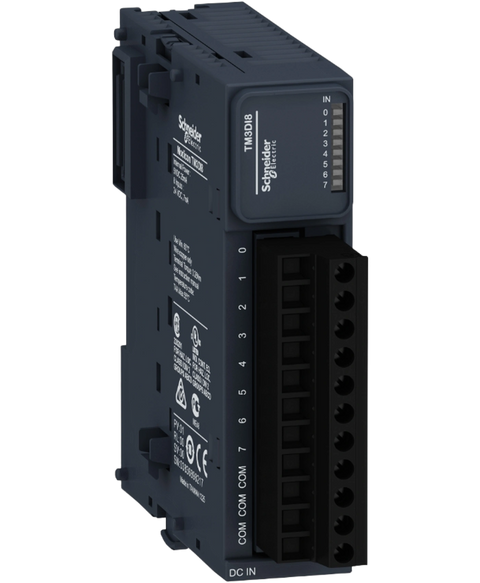

Schneider Electric TM3DI8
Discrete input module, tm3 series, 24VDC, 7mA, 8 input, 3.4 kohm impedance, -10 to 55 degree c, IP20
This Schneider Electric TM3DI8 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805634803.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM3 |
| Product or component type | Discrete input module |
| Range compatibility | Modicon M241 | Modicon M251 | Modicon M221 | Modicon M262 |
| Device application | Industrial application |
| Discrete input number | 8 |
| Discrete input voltage | 24 V DC |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input current | 7 mA |
| Voltage state 1 guaranteed | Input: 15...28.8 V DC |
| Voltage state 0 guaranteed | 0...5 V input |
| Current state 1 guaranteed | >= 2.5 mA |
| Current state 0 guaranteed | <= 1 mA |
| Input impedance | 3.4 kOhm |
| Response time on input | 4 ms (maximum (turn on)) | 4 ms (maximum (turn off)) |
| Safety reliability data | MTBF = 410 years 40 °C |
| Power supply type | Electronic powered by internal bus |
| Typical current consumption | 22 mA at 5 V DC | 5 mA |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| Isolation between channels and bus | 500 V AC |
| Local signalling | 1 LED per channel (green) for input status |
| Housing colour | Grey |
| AWG gauge | 0.2…2.5 mm² / AWG 24...AWG 14 with solid cable |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height | 90 mm |
| Width | 27.4 mm |
| Depth | 84.6 mm |
| Net weight | 0.085 kg |
| IP degree of protection | IP20 |
| Protective treatment | None |
| Marking | CE |
| Product certifications | CE | CULus | UKCA | RCM | EAC | CULus HazLoc |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | -10…35 °C (vertical installation) | -10…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation | 10…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail | 3.5 mm (f = 5…8.4 Hz) on panel mounting | 3 gn (f = 8.4…150 Hz) on panel mounting |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.652 cm |
| Package 1 Width | 10.664 cm |
| Package 1 Length | 12.68 cm |
| Package 1 Weight | 220.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 29.4 cm |
| Package 2 Width | 39.5 cm |
| Package 2 Length | 57.7 cm |
| Package 2 Weight | 10.32 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 504 |
| Package 3 Height | 105 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 133 kg |
