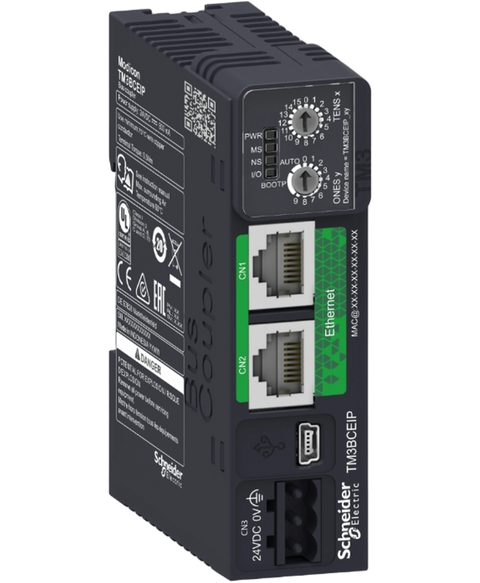

Schneider Electric TM3BCEIP
Distributed I,O module, modicon tm3, IP20 optimized bus coupler, ethernet interface
This Schneider Electric TM3BCEIP is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Accessories range and is referenced internally as PartLogic SKU PL26805665500.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM3 |
| Product or component type | I/O distributed module |
| Product compatibility | Logic controller | Motion controller |
| Communication port protocol | Ethernet IP/Modbus TCP |
| Communication network type | Ethernet IP | Modbus TCP | IPv4 (internet protocol) |
| Port Ethernet | 10/100BASE-T |
| Web services | Web server, Ethernet | Web server, USB |
| Current consumption | 0.8 A at 24 V DC internal supply maximum 7 expansion modules |
| Connector type | RJ45 | Mini USB port |
| Exchange mode | Half duplex, full duplex, autonegotiation |
| Transmission rate | 10/100 Mbit/s |
| Topology | Daisy chain |
| Communication service | Ethernet/IP adapter | Modbus TCP/IP server | RSTP (Ring topology support) | SNMP | Web server | DHCP client | BOOTP | Address conflict detection | FTP server |
| Local signalling | 1 LED green/red for PWR (System Status) | 1 LED green/red for MS (Module Status) | 1 LED green/red for NS (Network Status) | 1 LED green/red for I/O status |
| Fixing mode | By clipping locks (rail) | By screws (mounting plate) |
| Height | 96.5 mm |
| Width | 27 mm |
| Depth | 70 mm |
| Net weight | 0.10 kg |
| IP degree of protection | IP20 |
| Product certifications | CE | CULus | EAC | RCM | UKCA | EU-RO MR |
| Standards | IEC 61131-2 | UL/CSA 61010-1 | UL/CSA 61010-2-201 |
| Ambient air temperature for operation | -10…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3M4 on 35 mm DIN rail |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.400 cm |
| Package 1 Width | 10.400 cm |
| Package 1 Length | 12.500 cm |
| Package 1 Weight | 178.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.840 kg |
