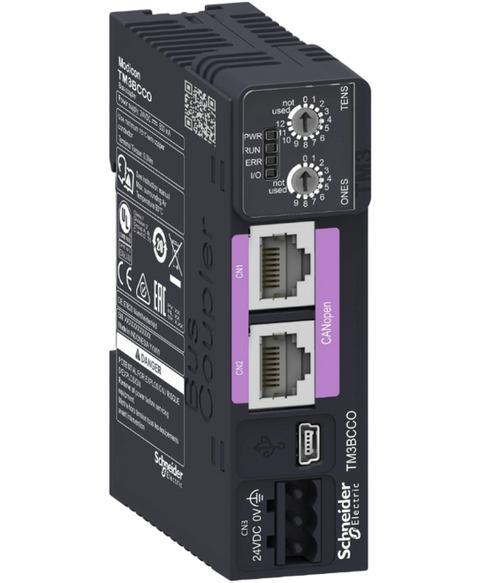

Schneider Electric TM3BCCO
IP20 I,O distributed optimized tm3 bus coupler module canopen interface
This Schneider Electric TM3BCCO is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules > Accessories range and is referenced internally as PartLogic SKU PL26894007618.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM3 |
| Product or component type | I/O distributed module |
| Product compatibility | Logic controller | Motion controller |
| Communication port protocol | CANopen |
| Communication network type | CANopen |
| Web services | Web server, USB |
| Current consumption | 0.8 A at 24 V DC internal supply maximum 7 expansion modules |
| Transmission rate | 20 kbit/s...1 Mbit/s |
| Topology | Daisy chain |
| Communication service | CANopen slave device profile |
| Local signalling | 1 LED green/red for PWR (System Status) | 1 LED green/red for RUN (Run) | 1 LED green/red for ERR (Error) | 1 LED green/red for I/O status |
| Fixing mode | By clipping locks (rail) | By screws (mounting plate) |
| Height | 96.5 mm |
| Width | 27 mm |
| Depth | 70 mm |
| Net weight | 0.10 kg |
| IP degree of protection | IP20 |
| Product certifications | CE | CULus | EAC | RCM | UKCA | EU-RO MR |
| Standards | IEC 61131-2 | UL/CSA 61010-1 | UL/CSA 61010-2-201 |
| Ambient air temperature for operation | -10…60 °C |
| Ambient air temperature for storage | -25…70 °C |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3M4 on 35 mm DIN rail |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 12.500 cm |
| Package 1 Weight | 172.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.748 kg |
