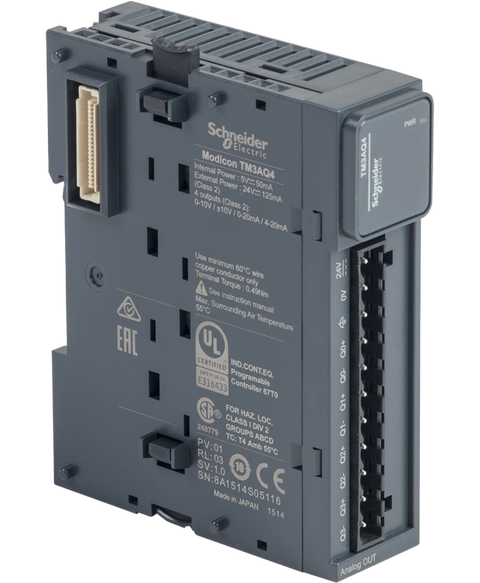

Schneider Electric TM3AQ4
Analog output module, modicon tm3, 24VDC, 50VAC, 40-125mA, 4 outputs, analogue input resolution: 11 bits + sign, led indicator, -10 to +55 degrees c, IP20
This Schneider Electric TM3AQ4 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805659842.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM3 |
| Product or component type | Analog output module |
| Range compatibility | Modicon M221 | Modicon M241 | Modicon M251 | Modicon M262 |
| Analogue output number | 4 |
| Analogue input resolution | 12 bits | 11 bits + sign |
| Stabilisation time | 1 ms |
| Analogue output type | Current: 4...20 mA | Current: 0...20 mA | Voltage: 0...10 V | Voltage: - 10...10 V |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Absolute accuracy error | +/- 1 % of full scale | +/- 0.2 % of full scale at 25 °C |
| Repeat accuracy | +/- 0.4 %FS |
| Output ripple | 20 mV |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable <30 m for output circuit |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for outputs and supply |
| LSB value | 2.44 mV, 0...10 V | 4.88 mV, - 10...10 V | 4.88 µA, 0...20 mA | 3.91 µA, 4...20 mA |
| Insulation | Between output and supply at 1500 V AC | Between output and internal logic at 500 V AC |
| Immunity to microbreaks | 10 ms |
| Load impedance ohmic | 1 kOhm voltage | 300 Ohm current |
| load type | Resistive |
| Temperature drift | +/- 0.01 %FS/°C |
| Non-linearity | +/- 0.2 %FS |
| Typical current consumption | 40 mA at 5 V DC no load | 50 mA at 5 V DC full load | 50 mA at 24 V DC no load | 125 mA at 24 V DC full load |
| Local signalling | 1 LED green for PWR |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height | 90 mm |
| Width | 23.6 mm |
| Depth | 70 mm |
| Net weight | 0.115 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CE | UKCA | RCM | EAC | CULus | CULus HazLoc |
| Standards | IEC 61131-2 |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 | Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Ambient air temperature for operation | -10…55 °C (horizontal installation) | -10…35 °C (vertical installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.500 cm |
| Package 1 Width | 10.500 cm |
| Package 1 Length | 12.700 cm |
| Package 1 Weight | 200.000 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 10.246 kg |
