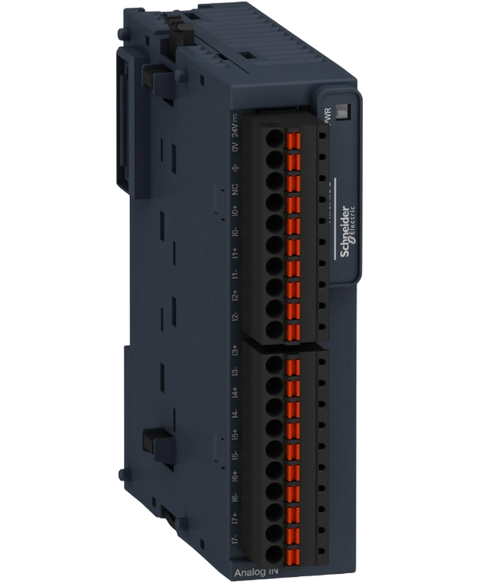

Schneider Electric TM3AI8G
Analog input module, 8 analogue inputs, current 4-20mA, voltage 0-10 v, 12 bits, 24VDC, IP20
This Schneider Electric TM3AI8G is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805581341.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM3 |
| Product or component type | Analog input module |
| Range compatibility | Modicon M221 | Modicon M241 | Modicon M251 | Modicon M262 |
| Analogue input number | 8 |
| Analogue input type | Current 4...20 mA | Current 0...20 mA | Voltage 0...10 V | Voltage - 10...10 V |
| Analogue input resolution | 12 bits | 11 bits + sign |
| Permissible continuous overload | 13 V, analogue input type: voltage | 40 mA, analogue input type: current |
| Input impedance | <= 50 Ohm | >= 1 MOhm |
| Sampling duration | 1 ms |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Absolute accuracy error | +/- 1 % of full scale | +/- 0.2 % of full scale at 25 °C |
| Repeat accuracy | +/-0.5 %FS |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable <30 m for input circuit |
| Electrical connection | 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs and supply | 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs |
| LSB value | 2.44 mV, 0...10 V | 4.88 mV, - 10...10 V | 4.88 µA, 0...20 mA | 3.91 µA, 4...20 mA |
| Insulation | Between input and supply at 1500 V AC | Between input and internal logic at 500 V AC |
| Immunity to microbreaks | 10 ms |
| Temperature drift | +/- 0.01 %FS/°C |
| Non-linearity | +/- 0.2 %FS |
| Typical current consumption | 40 mA at 5 V DC full load | 35 mA at 5 V DC no load | 30 mA at 24 V DC no load | 40 mA at 24 V DC full load |
| Local signalling | 1 LED green for PWR |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height | 90 mm |
| Width | 23.6 mm |
| Depth | 70 mm |
| Net weight | 0.1 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CE | UKCA | RCM | EAC | CULus | CULus HazLoc |
| Standards | IEC 61131-2 |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 | Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Ambient air temperature for operation | -10…55 °C (horizontal installation) | -10…35 °C (vertical installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 12.5 cm |
| Package 1 Length | 10.5 cm |
| Package 1 Weight | 195.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 9 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.292 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 288 |
| Package 3 Height | 75 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 60 kg |
