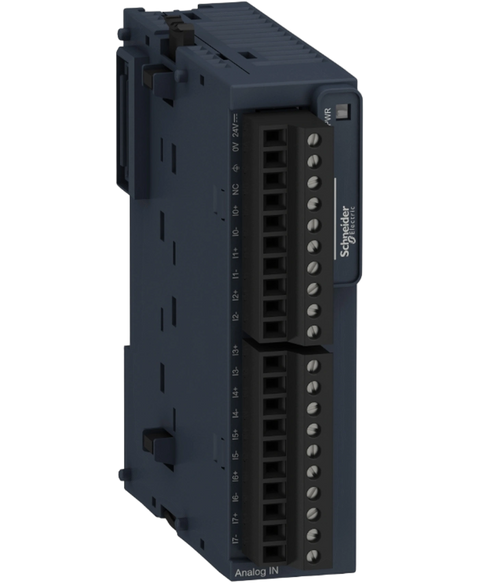

Schneider Electric TM3AI8
Analog input module, modicon tm3, 24VDC, 8 inputs, screw terminals
This Schneider Electric TM3AI8 is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805678848.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon TM3 |
| Product or component type | Analog input module |
| Range compatibility | Modicon M221 | Modicon M241 | Modicon M251 | Modicon M262 |
| Analogue input number | 8 |
| Analogue input type | Current 4...20 mA | Current 0...20 mA | Voltage 0...10 V | Voltage - 10...10 V |
| Analogue input resolution | 12 bits | 11 bits + sign |
| Permissible continuous overload | 13 V, analogue input type: voltage | 40 mA, analogue input type: current |
| Input impedance | <= 50 Ohm | >= 1 MOhm |
| Sampling duration | 1 ms |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Absolute accuracy error | +/- 1 % of full scale | +/- 0.2 % of full scale at 25 °C |
| Repeat accuracy | +/-0.5 %FS |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable <30 m for input circuit |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| LSB value | 2.44 mV, 0...10 V | 4.88 mV, - 10...10 V | 4.88 µA, 0...20 mA | 3.91 µA, 4...20 mA |
| Insulation | Between input and supply at 1500 V AC | Between input and internal logic at 500 V AC |
| Immunity to microbreaks | 10 ms |
| Temperature drift | +/- 0.01 %FS/°C |
| Non-linearity | +/- 0.2 %FS |
| Typical current consumption | 40 mA at 5 V DC full load | 35 mA at 5 V no load | 30 mA at 24 V no load | 40 mA at 24 V full load |
| Local signalling | 1 LED green for PWR |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 | Top hat type TH35-7.5 rail conforming to IEC 60715 | plate or panel with fixing kit |
| Height | 90 mm |
| Width | 23.6 mm |
| Depth | 70 mm |
| Net weight | 0.11 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | CE | UKCA | RCM | EAC | CULus | CULus HazLoc |
| Standards | IEC 61131-2 |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011 | Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011 |
| Ambient air temperature for operation | -10…55 °C (horizontal installation) | -10…35 °C (vertical installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail | 3 gn (f = 8.4…150 Hz) on DIN rail |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.368 cm |
| Package 1 Width | 10.513 cm |
| Package 1 Length | 12.603 cm |
| Package 1 Weight | 216.5 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 10.0 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 504 |
| Package 3 Height | 105 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 130 kg |
