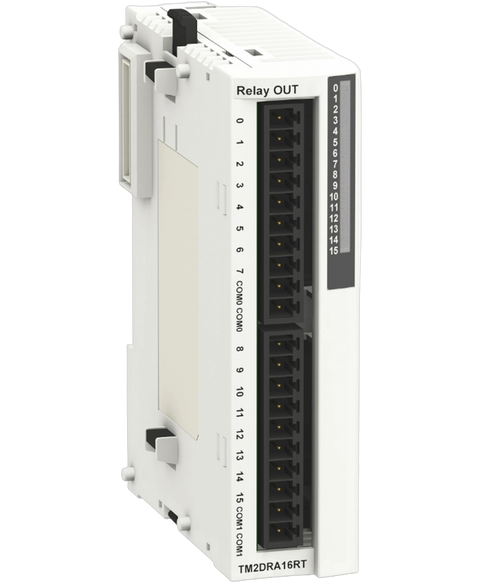

Schneider Electric TM2DRA16RT
The TM2DRA16RT from Schneider Electric is a discrete output module designed for the Modicon M238 series. It features 16 discrete relay outputs. Each output functions normally open and can handle a rated current of 2 Amps per channel.
This Schneider Electric TM2DRA16RT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801441152.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | I/O expansion module |
| Discrete output number | 16 |
| Discrete output type | Relay |
| Range compatibility | Twido | Advantys OTB |
| Discrete output function | 1 NO |
| Current per channel | 2 A |
| Maximum current per output common | 8 A |
| Number of common point | 2 |
| Contact resistance | 45 mOhm |
| Response time | <= 10 ms from state 0 to state 1 for input | <= 5 ms from state 1 to state 0 for input |
| Minimum switching current | 0.1 mA at 0.1 V DC |
| Isolation between channels | 1500 V for 1 minute |
| Isolation between channels and internal logic | 2300 V for 1 minute |
| Isolation between output channels group | 1500 V for 1 minute |
| Mechanical durability | 20000000 cycles |
| Electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive | 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive | 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms) | 100000 cycles 2 A 240 V AC resistive | 100000 cycles 2 A 30 V DC resistive |
| Current consumption | 30 mA at 5 V DC at state 1 for all output | 40 mA at 24 V DC at state 1 for all output |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.145 kg |
| Depth | 84.6 mm |
| Height | 90 mm |
| Width | 27.3 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.461 cm |
| Package 1 Width | 10.469 cm |
| Package 1 Length | 12.445 cm |
| Package 1 Weight | 238.4 g |
