Schneider Electric TM2DMM8DRT

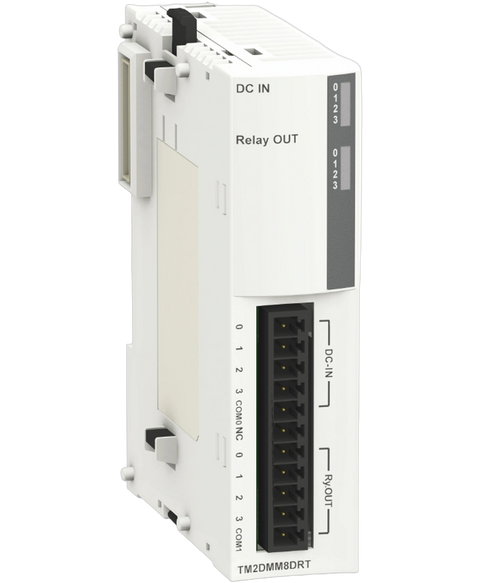

The TM2DMM8DRT from Schneider Electric is a discrete I,O module that operates with a discrete input voltage of 24 VDC. It features relay output types designed to meet various control requirements while ensuring reliable performance within specified voltage limits.
This Schneider Electric TM2DMM8DRT is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26801466984.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | Discrete I/O module |
| Discrete input number | 4 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output number | 4 |
| Discrete output type | Relay |
| Range compatibility | Twido | Advantys OTB |
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink or source |
| Discrete input current | 7 mA |
| Input impedance | 3.4 kOhm |
| Discrete output function | 1 NO |
| Current per channel | 2 A |
| Maximum current per output common | 7 A |
| Number of common point | 1 for output | 1 for input |
| Contact resistance | 45 mOhm |
| Response time | <= 10 ms from state 0 to state 1 for output | <= 5 ms from state 1 to state 0 for output | 4 ms at state 0 for input | 4 ms at state 1 for input |
| Minimum switching current | 0.1 mA at 0.1 V DC |
| Isolation between channels | None |
| Isolation between channels and internal logic | 2300 V for 1 minute (output) | 500 V for 1 minute (input) |
| Isolation between input channel and output channel | 1500 V for 1 minute |
| Isolation between output channels group | 1500 V for 1 minute |
| Mechanical durability | 20000000 cycles |
| Electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive | 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive | 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms) | 100000 cycles 2 A 240 V AC resistive | 100000 cycles 2 A 30 V DC resistive |
| Current consumption | 20 mA at 24 V DC at state 1 for all input/output | 25 mA at 5 V DC at state 1 for all input/output |
| Local signalling | 1 display block |
| Electrical connection | 1 removable screw terminal block |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.095 kg |
| Depth | 70 mm |
| Height | 90 mm |
| Width | 42.9 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 11 cm |
| Package 1 Length | 13 cm |
| Package 1 Weight | 192 g |
