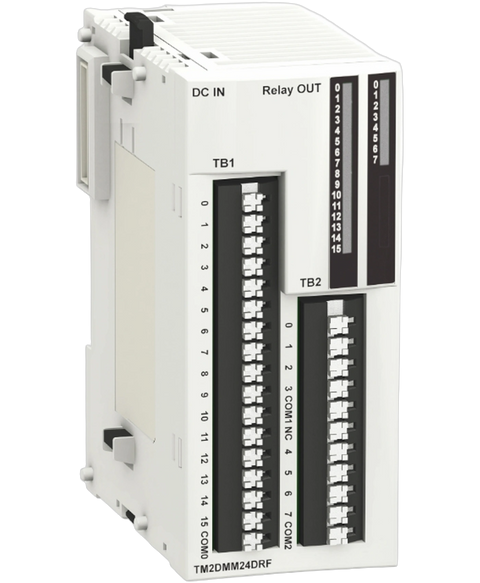

Schneider Electric TM2DMM24DRF
Discontinued by manufacturer, I,O module expansion, 16 inputs, 8 output, 24VDC
This Schneider Electric TM2DMM24DRF is supplied brand new by PartLogic for machine control, process automation, industrial communication, equipment maintenance and replacement applications. It forms part of our Industrial automation > Plc controllers > Io modules range and is referenced internally as PartLogic SKU PL26805543619.
Before ordering, please confirm the manufacturer part number, product specifications and compatibility with your existing equipment. If you are replacing a failed, obsolete or hard-to-find part, contact PartLogic and we can help check suitability or source related components.
| Range of product | Modicon M238 logic controller |
| Product or component type | Discrete I/O module |
| Discrete input number | 16 |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output number | 8 |
| Discrete output type | Relay |
| Range compatibility | Twido | Advantys OTB |
| Input voltage limits | 20.4...28.8 V |
| Discrete input logic | Sink or source |
| Discrete input current | 7 mA |
| Input impedance | 3.4 kOhm |
| Discrete output function | 1 NO |
| Current per channel | 2 A |
| Maximum current per output common | 7 A |
| Number of common point | 2 for output | 1 for input |
| Contact resistance | 45 mOhm |
| Response time | <= 10 ms from state 0 to state 1 for output | <= 5 ms from state 1 to state 0 for output | 4 ms at state 0 for input | 4 ms at state 1 for input |
| Minimum switching current | 0.1 mA at 0.1 V DC |
| Isolation between channels | None |
| Isolation between channels and internal logic | 2300 V for 1 minute (output) | 500 V for 1 minute (input) |
| Isolation between input channel and output channel | 1500 V for 1 minute |
| Isolation between output channels group | 1500 V for 1 minute |
| Mechanical durability | 20000000 cycles |
| Electrical durability | 100000 cycles 0.5 A AC-15 240 V AC cos phi = 0.35 inductive | 100000 cycles 1 A AC-15 240 V AC cos phi = 0.7 inductive | 100000 cycles 1 A DC-13 24 V DC inductive (L/R = 7 ms) | 100000 cycles 2 A 240 V AC resistive | 100000 cycles 2 A 30 V DC resistive |
| Current consumption | 45 mA at 24 V DC at state 1 for all input/output | 65 mA at 5 V DC at state 1 for all input/output |
| Local signalling | 1 display block |
| Electrical connection | 1 spring terminal block |
| Mounting support | 35 mm symmetrical DIN rail |
| Net weight | 0.14 kg |
| Depth | 70 mm |
| Height | 90 mm |
| Width | 42.9 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 10.5 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 230 g |
